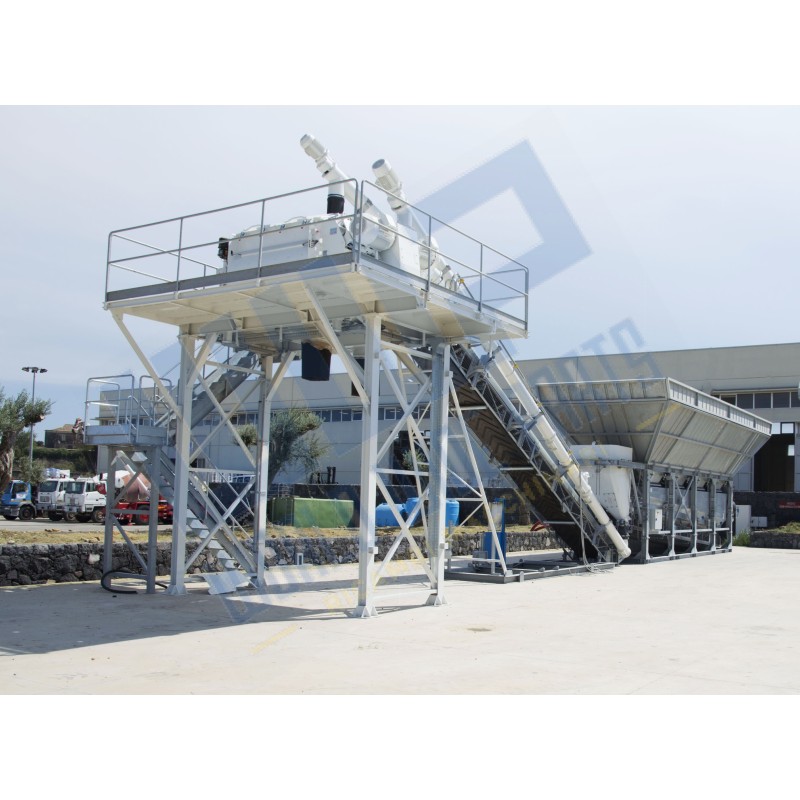

MOBIL FAST 2000 DRY-WET

Name: MOBIL FAST 2000 DRY-WET
Brand: World Wide Parts
SKU: MOBILFAST2000DRYWET
Availability: OutOfStock

Wet Production 60 m³/h – Dry production 100 m³/h - Aggregate storage tank unit having No.4 compartments with total storage capacity 65-95 m³ - Twin shaft mixer MBT (yield concrete 2,00 m³ per cycle) - Mixer loaded by loading belt - Cabin - FOUNDATION WORKS NO NEEDED - FULLY GALVANIZED.

Codice : MOBILFAST2000DRYWET

Quantity

Generic Description

N.1 MOBIL FAST 2000 DRY-WET
Wet Production 60 m³/h – Dry production 100 m³/h - Aggregate storage tank unit having No.4 compartments with total storage capacity 65-95 m³ - Twin shaft mixer MBT (yield concrete 2,00 m³ per cycle) - Mixer loaded by loading belt - Cabin - FOUNDATION WORKS NO NEEDED - FULLY GALVANIZED.

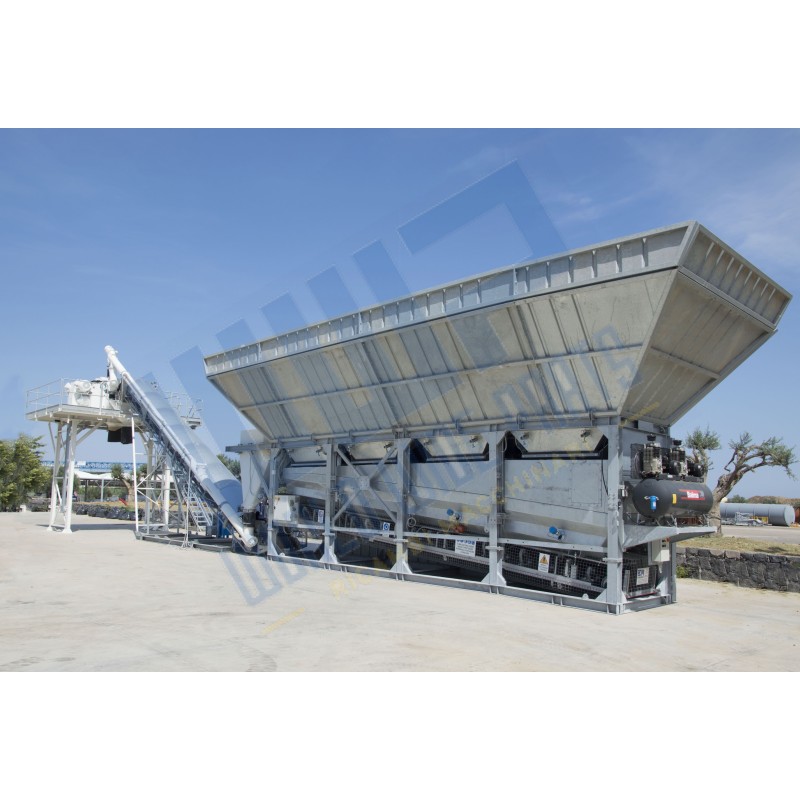

N.1 FOUR ALIGNED AGGREGATES BINS FOR MOBIL FAST - STORAGE 65-95 m³ - FULLY GALVANISED.

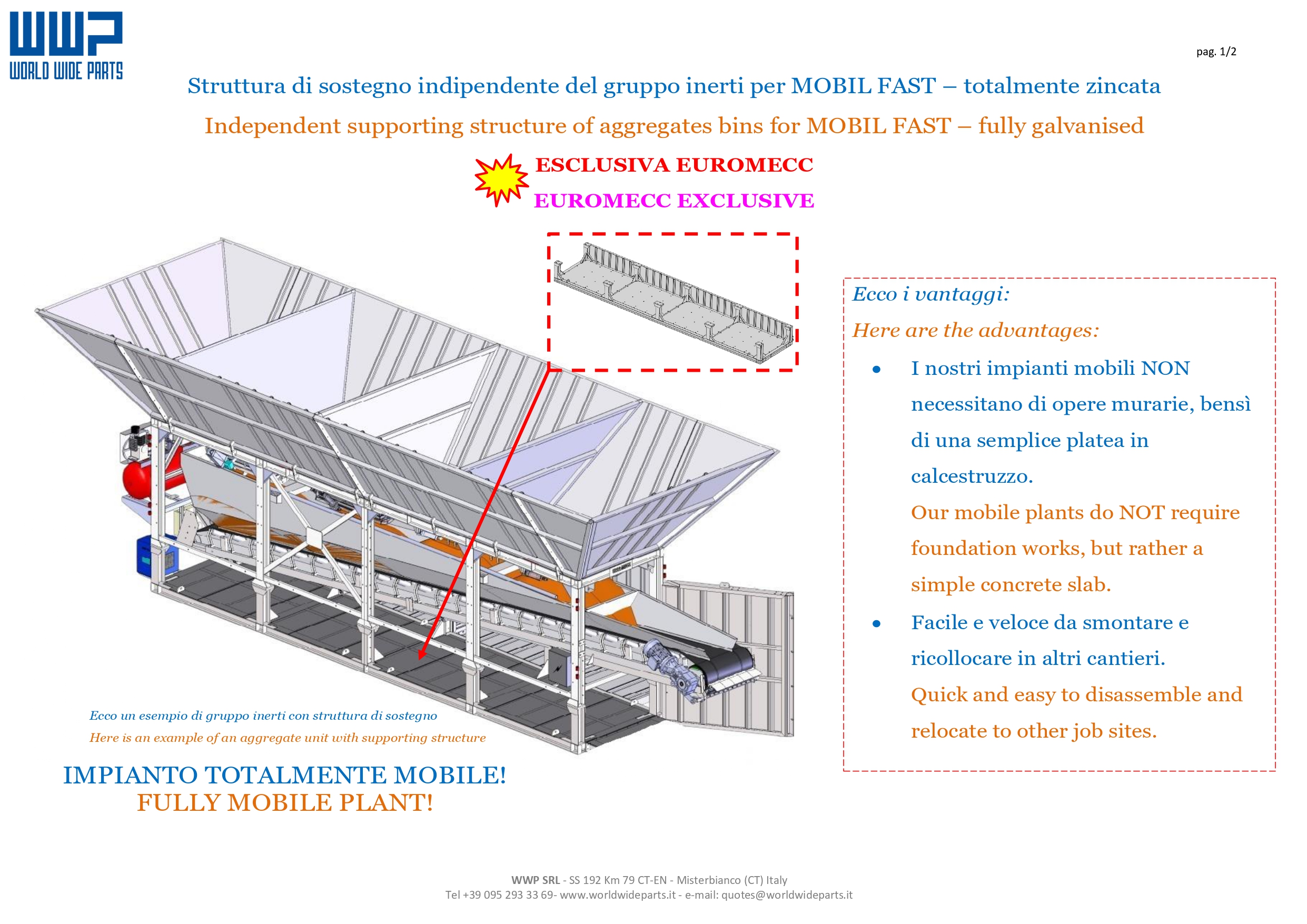

N.1 INDIPENDENT SUPPORTING STRUCTURE OF AGGREGATES BINS (No. 4 COMPARTMENTS) FOR FAST DRY-WET mandatory for mobile plants - to avoid foundation works - TOTALLY GALVANIZED.
N.8 SWITCH FOR OPENING STATUS OF THE AGREGATE GATE.
N.4 SETUP FOR THE INSTALLATION OF THE COVERING FOR THE AGGREGATES BINS (COST FOR SINGLE COMPARTMENT).
N.4 SETUP FOR THE INSTALLATION OF SAFETY BARRIERS (COST FOR SINGLE COMPARTMENT).
N.1 UPPER COVERING FOR BELT for chevron belt with WIDTH 800 mm, length 12000 mm.
N.1 LOWER COVERING FOR BELT for chevron belt with WIDTH 800 mm - length 12000 mm.
N.1 ANTI-OBSTRUCTION DEVICE completed with rotary paddle level-indicator device installed in the discharge cone of the loading belt.
N.1 PULSE COUNTER ENDRESS+HAUSER WITH BUTTERFLY VALVE FOR RECYCLED WATER AND SPHERE VALVE OF 3" FOR CLEAN WATER (DIFFERENCE IN PRICE).
N.1 BETONWIN 3 + PC SIEMENS OR IBM + MONITOR 22``LCD+ LASER PRINTER.
N.1 SOFTWARE FOR MIXER OPERATING FOR BETONWIN/BETONSYSTEM (FOR TWIN SHAFT COMPULSORY MIXER OR PLANETARY MIXER) AND PASSIV WATTMETER FOR MIXER.
N.1 REMOTE TECHNICAL SUPPORT SERVICE FREE OF CHARGE DURING GUARANTEE PERIOD.
N.1 UPS (ON-LINE TYPE) Battery life 6/20 minutes.
N.1 INSULATED CABIN MAX 5000 mm; windows on 2 sides; panels/walls and roof th. 40 mm
N.1 FINISHING OF PAINTED COMPONENTS STANDARD COLOUR: RAL 9002 (GREY WHITE) / RAL 7015 (SLATE GREY).
N.1 GENERAL DESIGN SPECIFICATIONS FOR BATCHING PLANTS AND SILOS OF MAXIMUM DIAMETER 3500 mm
All the components are designed for the following environmental conditions:
- Soil roughness: flat area with low vegetation, isolated obstacles 20 times the height from the installation site - Exposition Category II (Eurocode 1);
- Actions on structures:
snow load: 1.00 kN/m2
wind load: v= 28 m/s – 100 km/h;
- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);
- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20; - Outside air temperature: within -5° (minimum winter temperature) and +40° (maximum summer temperature), unless for the supply of insulated claddings on the concrete plants and/or the silos;
- Importance Class: Class I, buildings with occasional presence of people (Eurocode 1).
Steel for structural use: S275 or better quality, hot-rolled profiles, in accordance with the EN 10025 standards.
Alloy steel: S235 or better quality, in accordance with the UNI EN 10025 standards.
