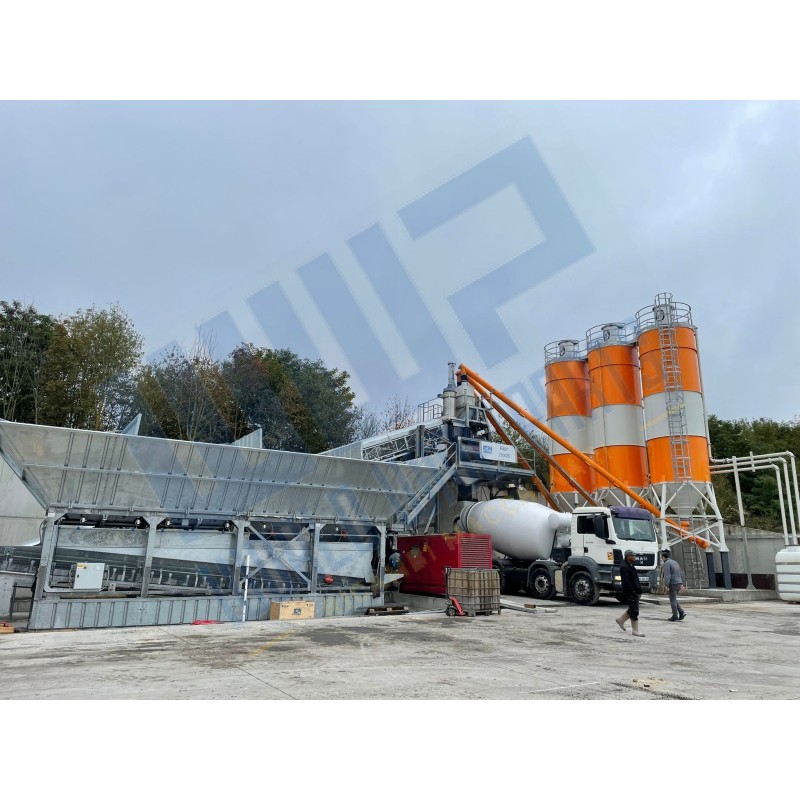

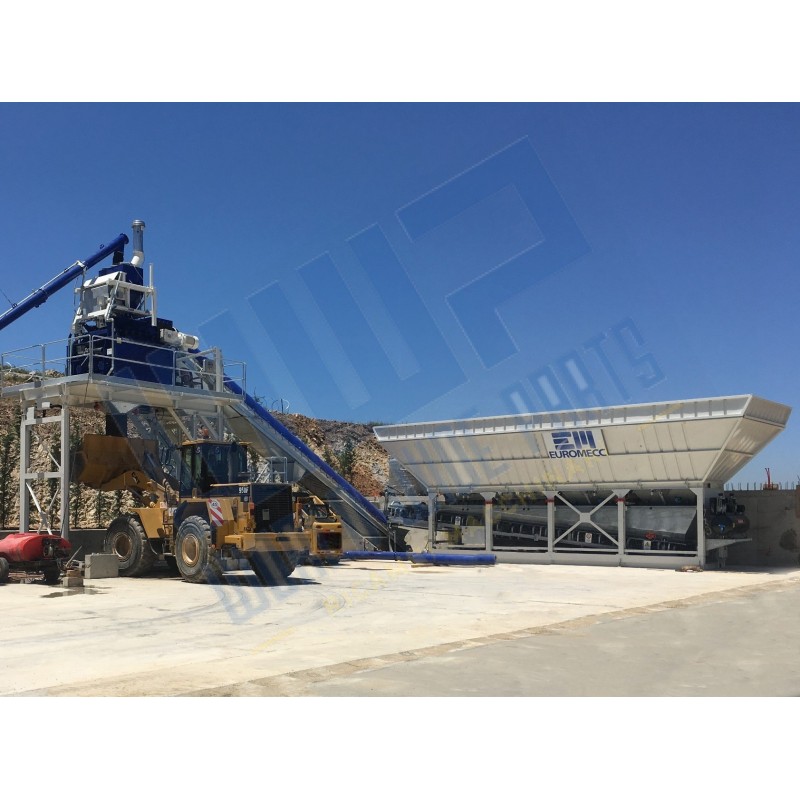

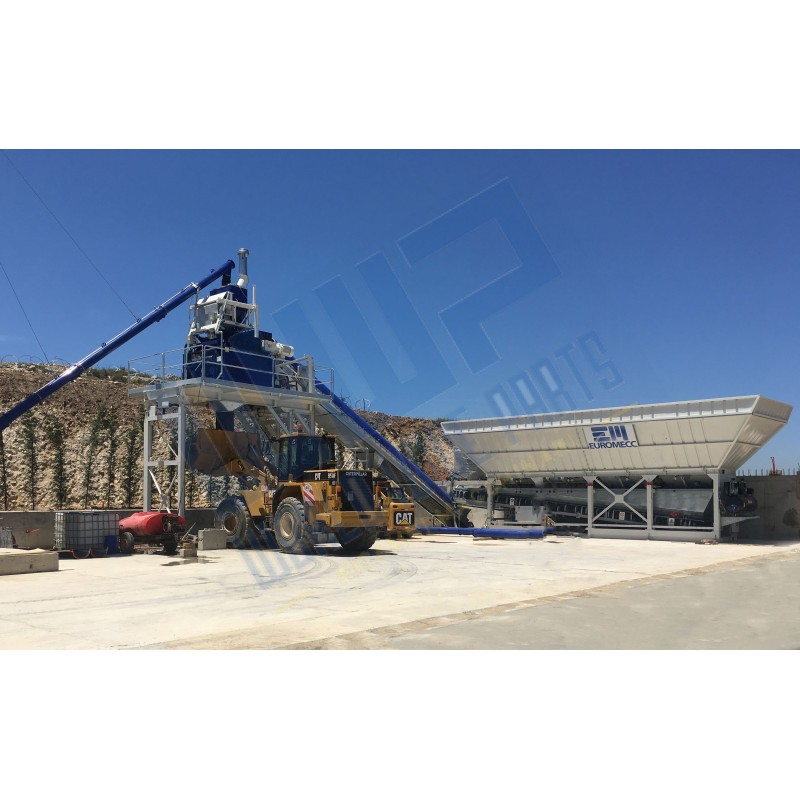

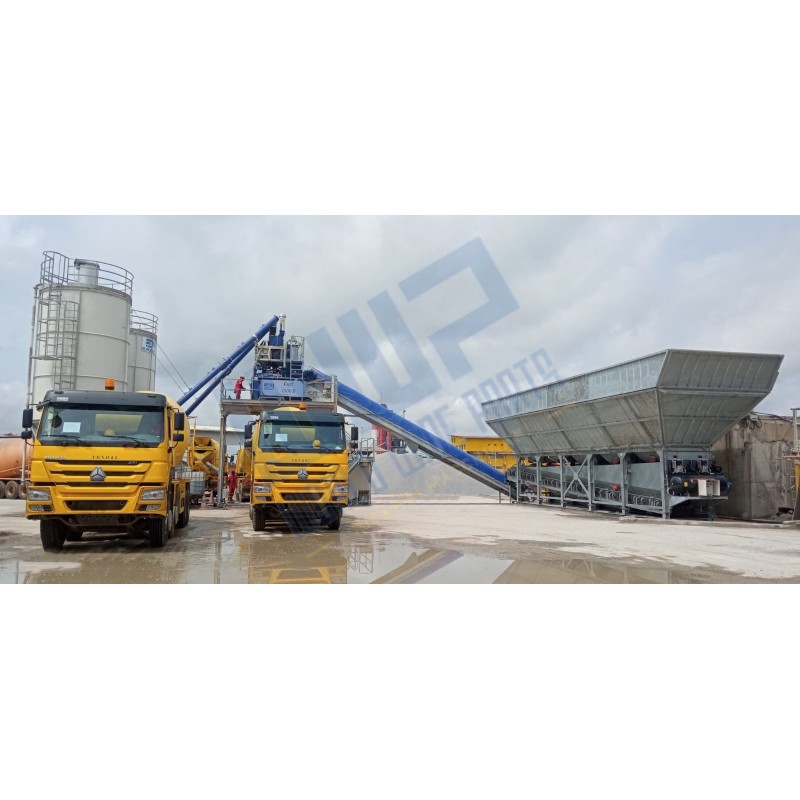

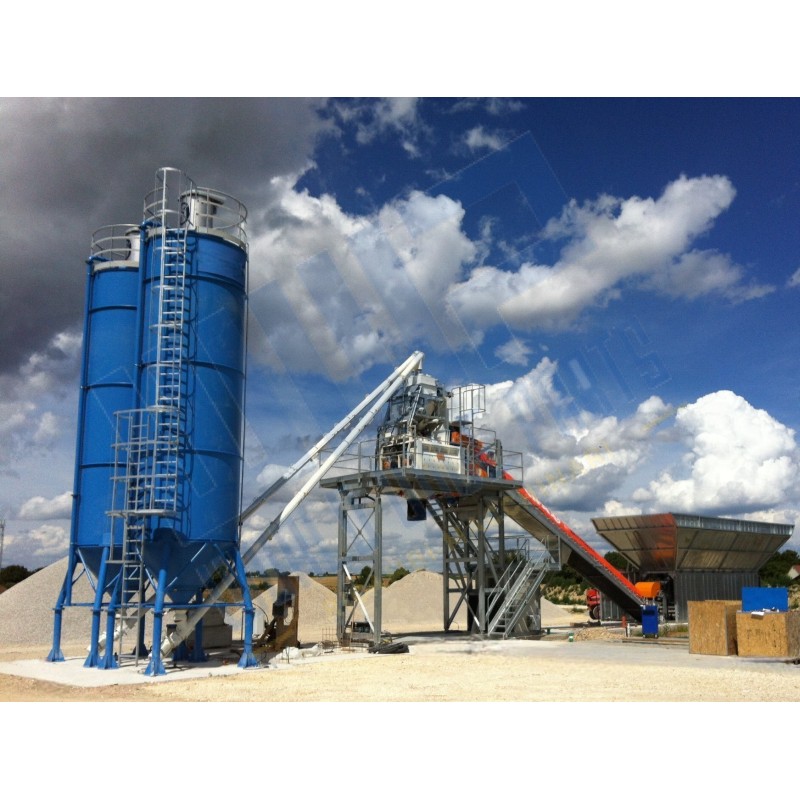

MOBIL FAST 2500 B
Production 100 m3/h – Twin shaft mixer 3750-2500 (yield concrete 2.5 m3 per cycle) - Mixer loaded by loading belt - Cabin - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED
Generic Description
- N.1 MOBIL FAST 2500 B - MIXING GROUP AND LOADING BELT
Production 100 m³/h – Twin shaft mixer 3750-2500 - yield concrete 2,5 m³ per cycle (for more details, see the MEB catalog under "Technical Data Sheets") - Mixer loaded by loading belt - Cabin - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED. - N.1 AGGREGATE STORAGE BINS WITH N.4 COMPARTMENTS CAPACITY 65-95 m³ (geometric-peak) - FULLY GALVANIZED.
- N.1 INDIPENDENT SUPPORTING STRUCTURE OF AGGREGATES BINS (4 COMPARTMENTS) FOR MOBIL FAST 2500 B.
- N.4 SETUP FOR THE INSTALLATION OF THE COVERING FOR THE AGGREGATES BINS (COST FOR SINGLE COMPARTMENT).
- N.4 SETUP FOR THE INSTALLATION OF SAFETY BARRIERS (COST FOR SINGLE COMPARTMENT).
- N.1 BETONWIN 3 + PC SIEMENS OR IBM + MONITOR 22``LCD+ LASER PRINTER.
- N.1 SOFTWARE FOR MIXER OPERATING FOR BETONWIN/BETONSYSTEM (FOR TWIN SHAFT COMPULSORY MIXER OR PLANETARY MIXER) AND PASSIV WATTMETER FOR MIXER.
- N.1 UPPER COVERING IN PVC FOR BELT FOR MOBIL FAST 2500B belt with width 1000 mm, length 15000 mm.
- N.1 LOWER COVERING FOR MOBIL FAST 2500B/3000/3330 for chevron belt with width 1000 mm, length 15000 mm.
- N.1 WATER ADDING SYSTEM pulse counter with sphere valve of 1/2" for clean water - precision batching in case of mixer.
- N.1 REMOTE TECHNICAL SUPPORT SERVICE FREE OF CHARGE DURING GUARANTEE PERIOD.
- N.1 UPS (ON-LINE TYPE) Battery life 6/20 minutes.
- N.1 MANAGEMENT IN MAINTENANCE MODE - MOBIL FAST 2500 B THROUGH ELECTROMECHANICAL CONTROLS - ON THE CONTROL PANEL OF THE BATCHING PLANT.
- N.1 RINGS FOR SHAFTS CLEANING FOR TWIN SHAFT MIXER.
- N.1 FILTER (10 m²) FOR DOUBLE SHAFT MIXER 1,33 m³.
- N.1 FINISHING OF PAINTED COMPONENTS STANDARD COLOUR: RAL 9002 (GREY WHITE) / RAL 7015 (SLATE GREY).
- N.1 GENERAL DESIGN SPECIFICATIONS FOR BATCHING PLANTS AND SILOS OF MAXIMUM DIAMETER 3500 mm.
All the components are designed for the following environmental conditions:
- Soil roughness: flat area with low vegetation, isolated obstacles 20 times the height from the installation site - Exposition Category II (Eurocode 1);
- Actions on structures:
snow load: 1.00 kN/m2
wind load: v= 28 m/s – 100 km/h;
- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);
- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20; - Outside air temperature: within -5° (minimum winter temperature) and +40° (maximum summer temperature), unless for the supply of insulated claddings on the concrete plants and/or the silos;
- Importance Class: Class I, buildings with occasional presence of people (Eurocode 1).
Steel for structural use: S275 or better quality, hot-rolled profiles, in accordance with the EN 10025 standards.
Alloy steel: S235 or better quality, in accordance with the UNI EN 10025 standards.
Technical Data Sheets
Data Sheet FAST 2500B
Suggested configuration
Recommended configuration with detailed information
Complementary accessories
Telescopic probe - L: 720mm
C822N000003
Hoppertop filter
C809N000002
Kit for charging ramp supporting for MOBIL FAST 2500/3000/3330 E MOBIL FAST DRY 4V 100
RAMPFAST2500-3330
Stainless steel batcher for n° 2 admixture 24 l each
additives2x24
Standard safety grids for aggregates storage bins with no. 4 compartments - for FAST SERIES plants
grids-storage4bins
Aggregates storage unit with no.5 bins for MOBIL FAST - instead of no. 4 bins - FULLY GALVANISED
5binsFAST
