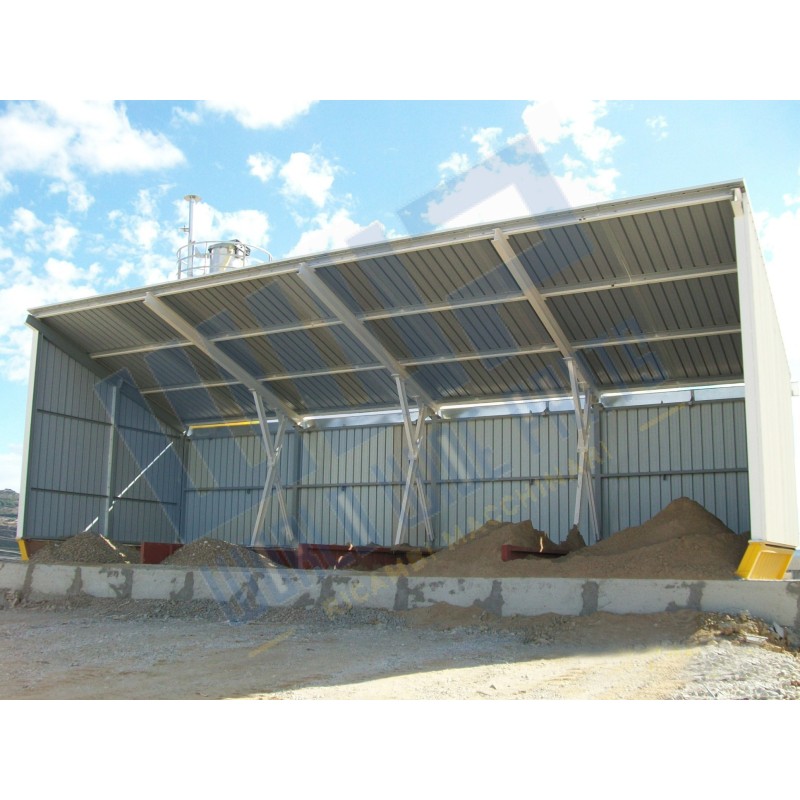

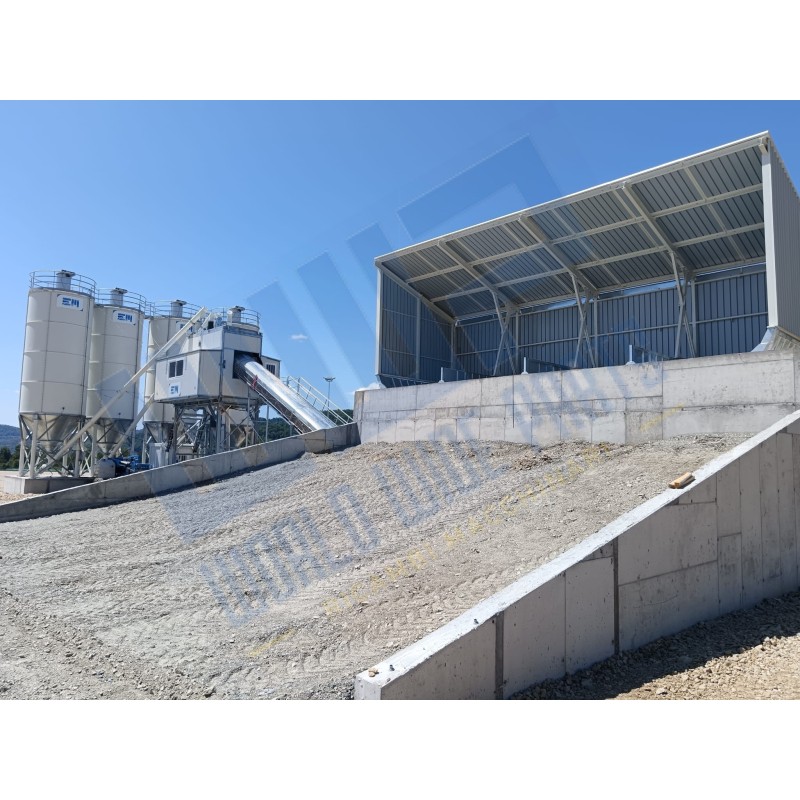

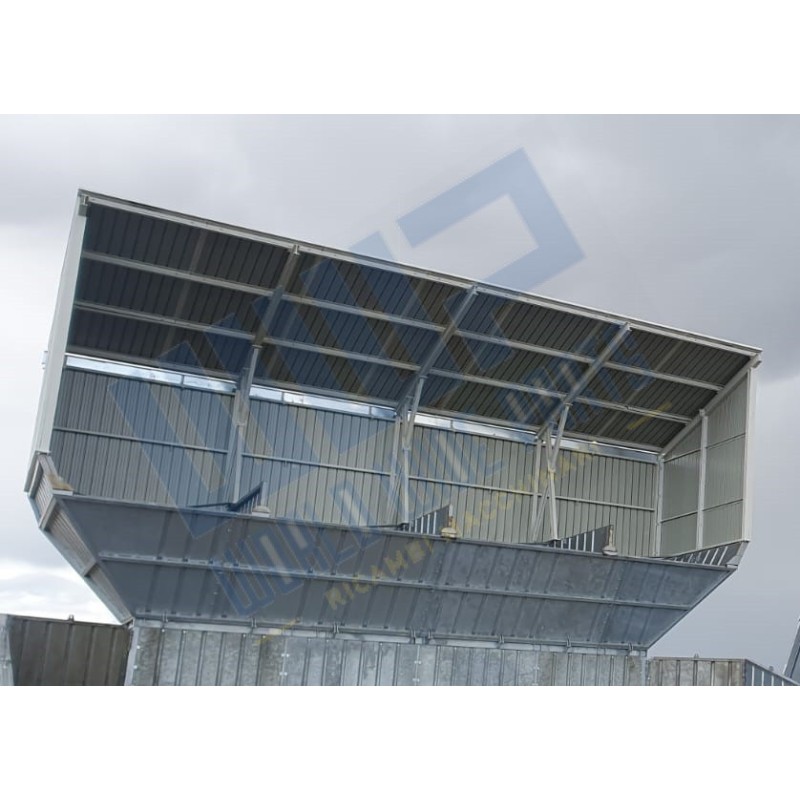

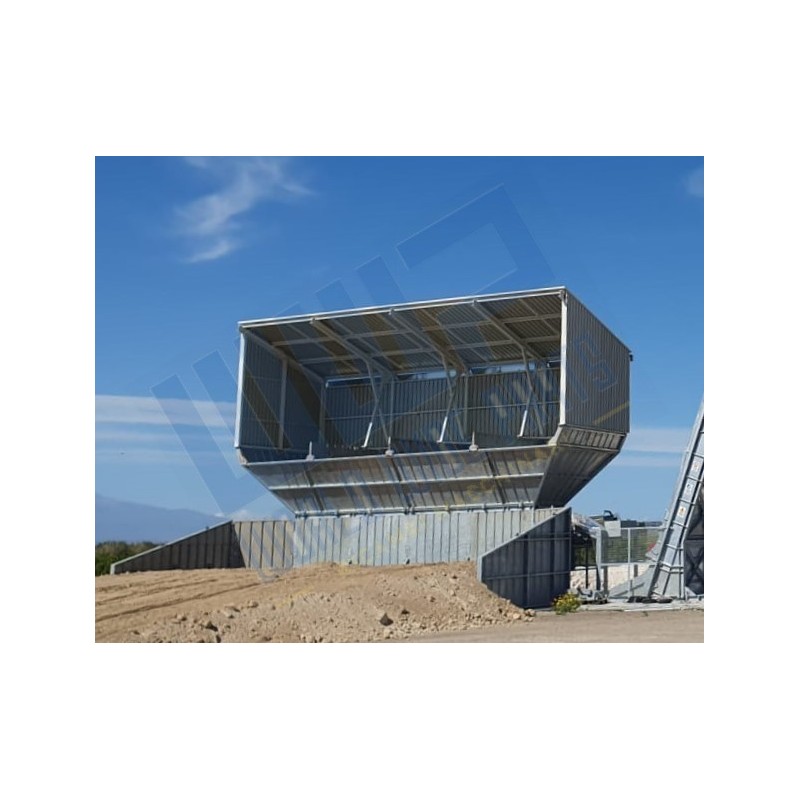

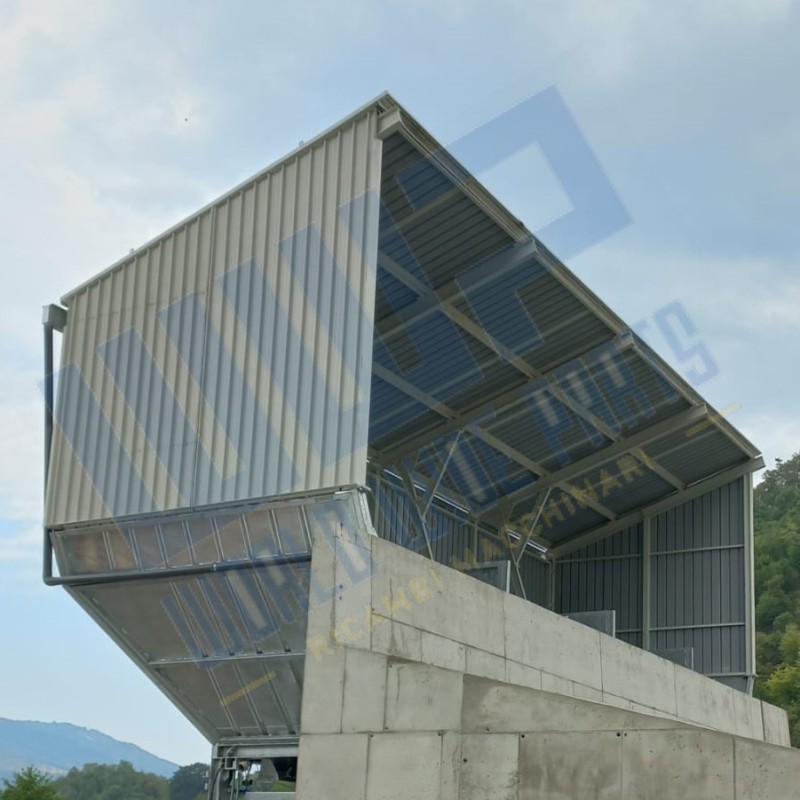

Upper covering for aggregates bins on 3 sides for MOBIL FAST 2500/3000/3330/DRY 100 - 4 or 5 compartments

Upper covering on 3 sides for aggregates hopper made of galvanized steel sheet 8/10 prepainted on the external side with rainpipe. Without column to help the loading of the hopper. Structure suitable for the seismic zone type2.

Covering structures, finishing: hot-dip galvanised.

PLEASE NOTE:

The conditions assumed for the design of each component:

- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);

- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20.

For further environmental design conditions, please refer to the proper section of the estimate “General Design Specifications”.

Available for aggregates' units having 4 compartments with storage of 65-95 m³ or 5 compartments with storage 115/150 m³
