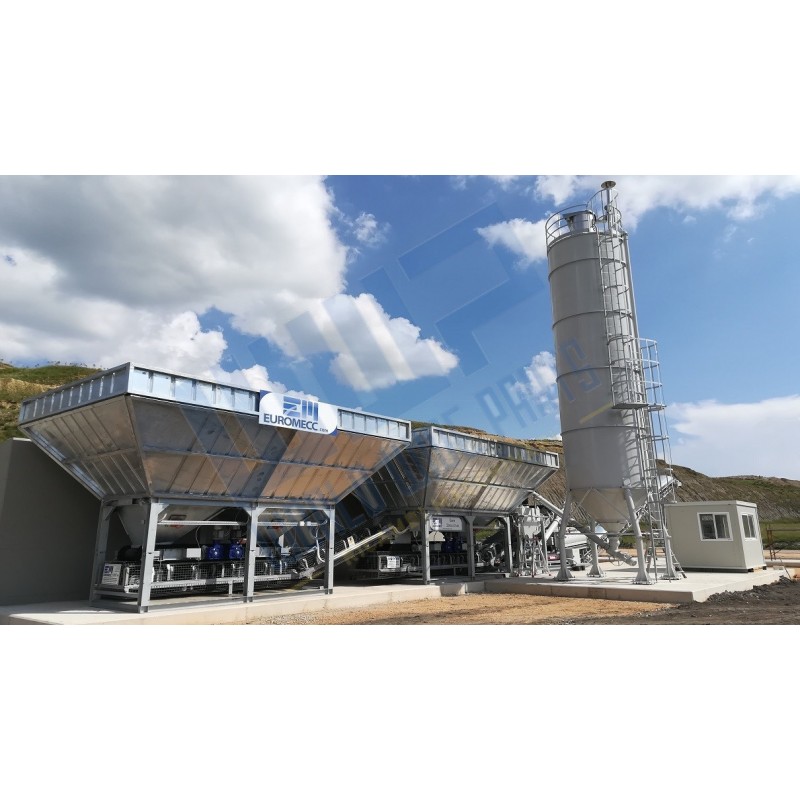

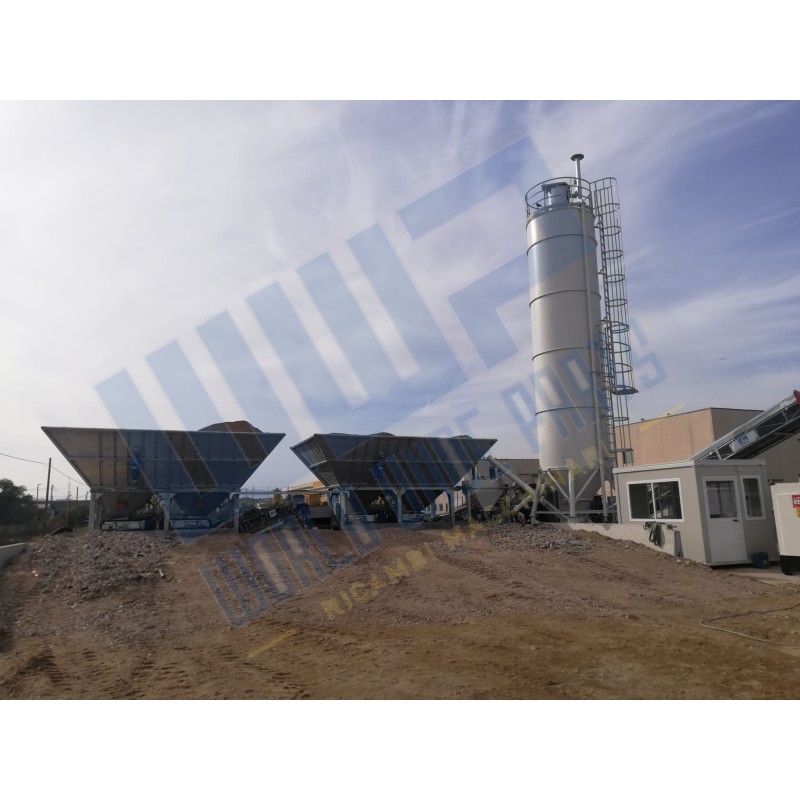

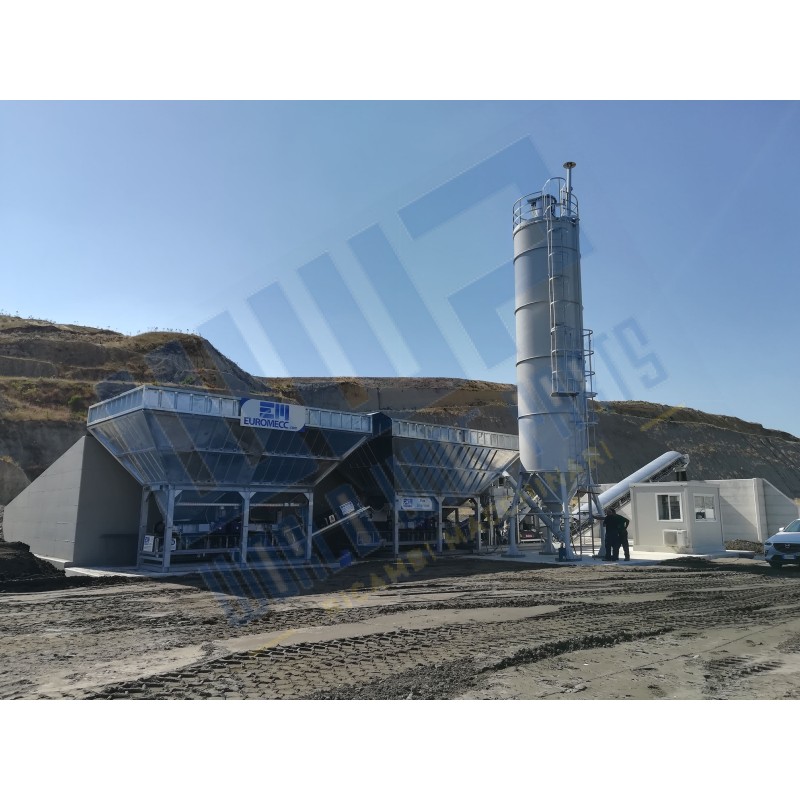

MOBIL FAST 2 MIX-MC - CEMENTED MIXTURE

Name: MOBIL FAST 2 MIX-MC - CEMENTED MIXTURE
Brand: World Wide Parts
SKU: MOBILFAST2MIXMC
Availability: OutOfStock

mobile plant for cemented mixture - storage 30/39 m³ real geometric volume - suitable for seismic zone with maximum PGA 0,20g - Cement control through loading cells - continuous mixer 150 m³/h - FULLY GALVANISED.

Codice : MOBILFAST2MIXMC

Quantity

Generic Description

N.1 MOBIL FAST 2 MIX-MC - N.2 AGGREGATES' STORAGE BINS.
mobile plant for cemented mixture - storage 30/39 m³ real geometric volume - suitable for seismic zone with maximum PGA 0,20g - Cement control through loading cells - continuous mixer 150 m³/h - FULLY GALVANISED.
N.2 SETUP FOR THE INSTALLATION OF SAFETY BARRIERS (COST FOR SINGLE COMPARTMENT).
N.2 CONTINUOUS WEIGHING SYSTEM - to apply on extractor volumetric belt and RELATIVE HARDWARE AND SOFTWARE INTEGRATION OF THE AUTOMATION MANAGEMENT FOR CONTINUOUS WEIGHING.
N.1 EUROFLOW - AUTOMATION FOR CEMENT MIXTURE PLANT - PC + PLC - Management up to 4 aggregates - 1 cement - 1 water - 1 mixer - 100 formulas.
N.1 PRINT OPTION FOR CEMENT MIXTURE AUTOMATION - for new systems.
N.1 UPS (ON-LINE TYPE) - Battery life 6/20 minutes.
N.1 COMMAND CABIN supplied by the purchasing company.
N.1 FINISHING OF PAINTED COMPONENTSSTANDARD COLOUR: RAL 9002 (GREY WHITE) / RAL 7015 (SLATE GREY).
N.1 GENERAL DESIGN SPECIFICATIONS FOR BATCHING PLANTS AND SILOS OF MAXIMUM DIAMETER 3500 mm
All the components are designed for the following environmental conditions:
- Soil roughness: flat area with low vegetation, isolated obstacles 20 times the height from the installation site - Exposition Category II (Eurocode 1);
- Actions on structures:
snow load: 1.00 kN/m2
wind load: v= 28 m/s – 100 km/h;
- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);
- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20; - Outside air temperature: within -5° (minimum winter temperature) and +40° (maximum summer temperature), unless for the supply of insulated claddings on the concrete plants and/or the silos;
- Importance Class: Class I, buildings with occasional presence of people (Eurocode 1).
Steel for structural use: S275 or better quality, hot-rolled profiles, in accordance with the EN 10025 standards.
Alloy steel: S235 or better quality, in accordance with the UNI EN 10025 standards.
