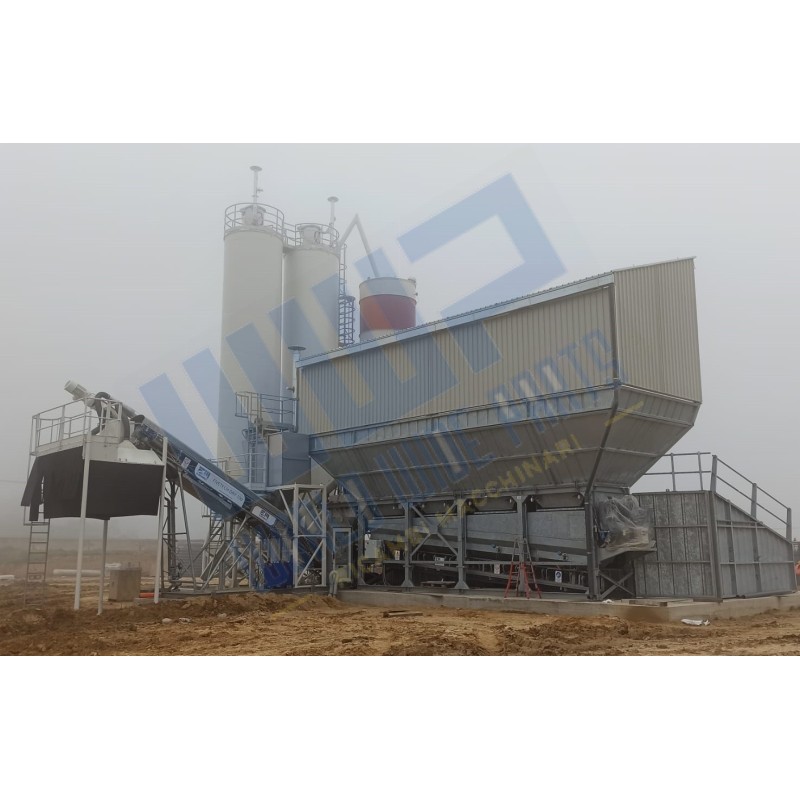

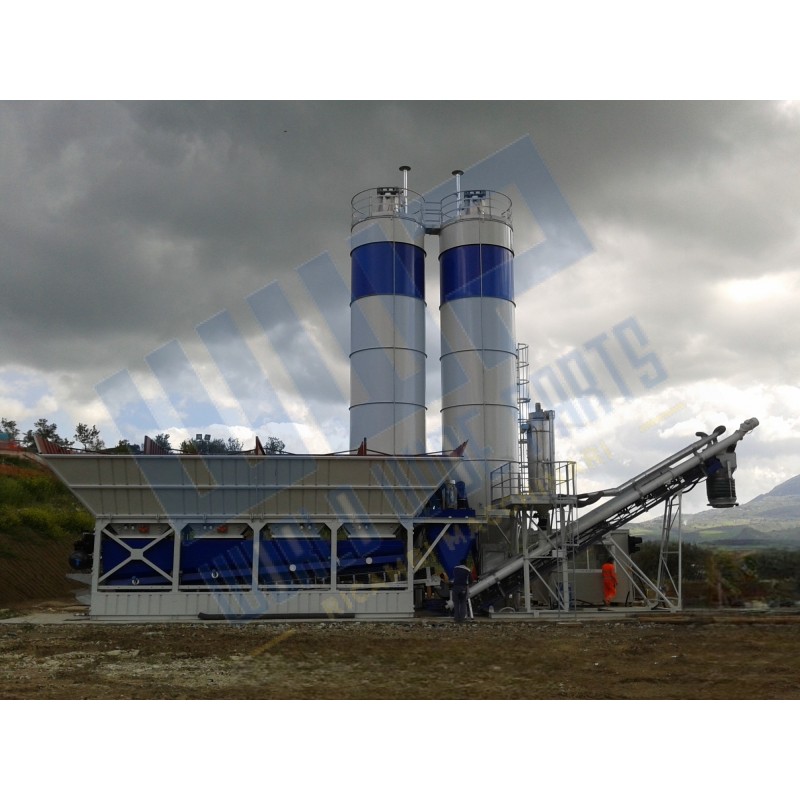

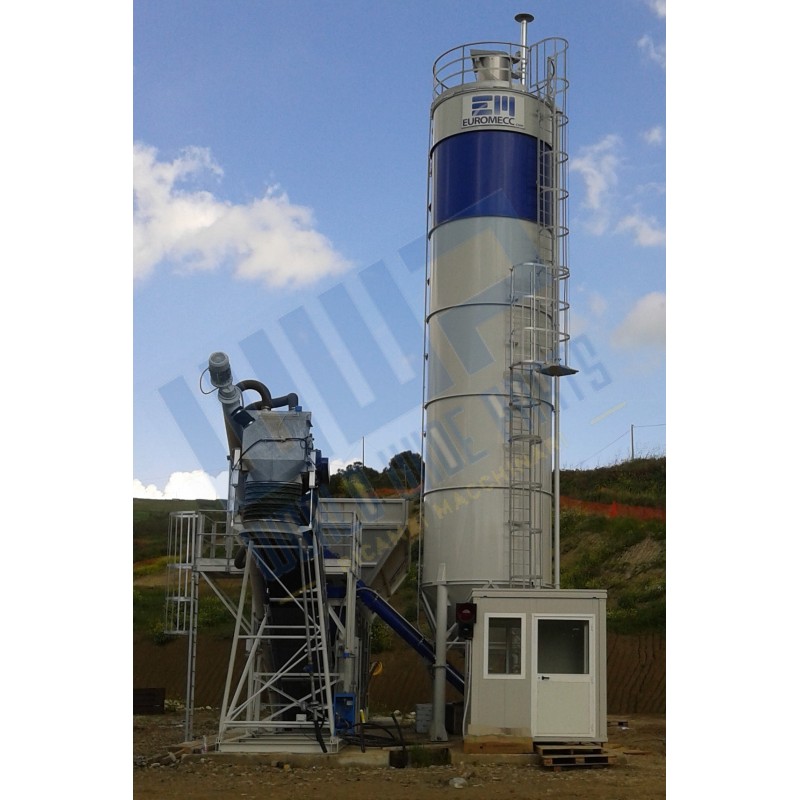

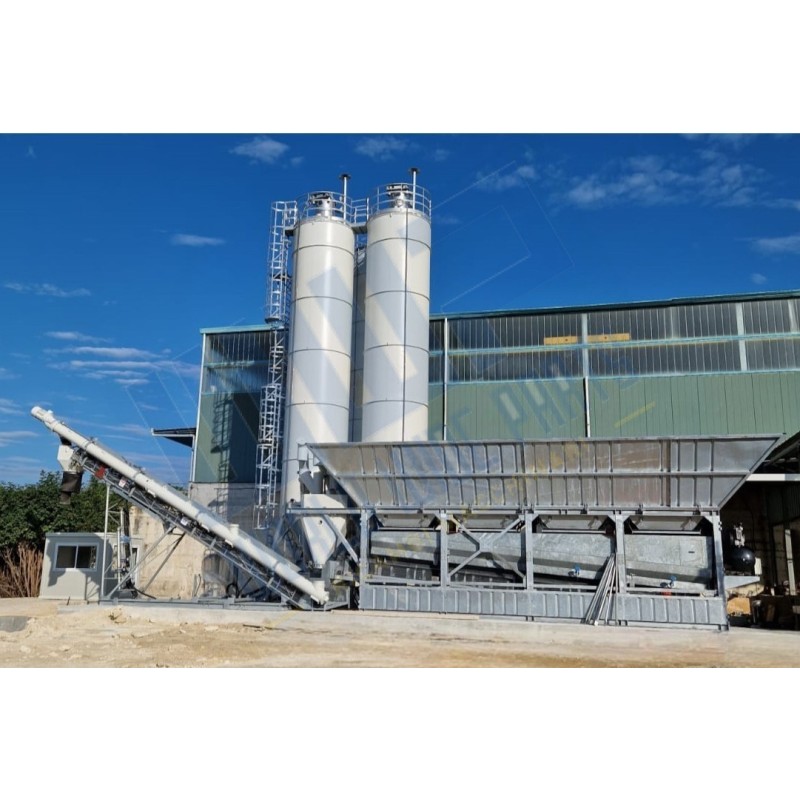

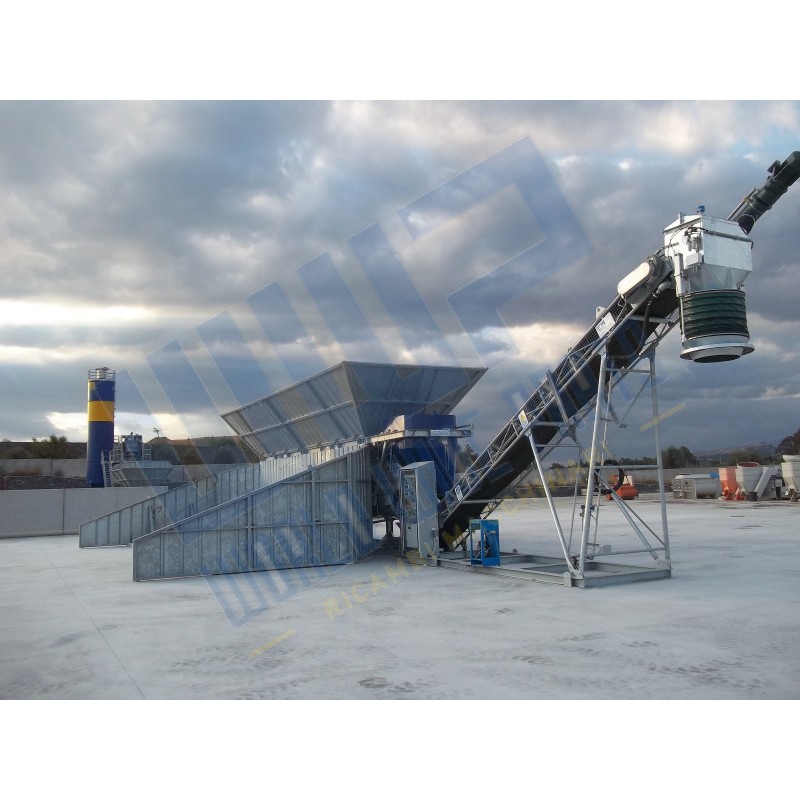

MOBIL FAST DRY 100

Name: MOBIL FAST DRY 100
Brand: World Wide Parts
SKU: MOBILFASTDRY100
Availability: OutOfStock

Production 100 m³/h - Aggregate storage tank unit having No.4 compartments with total storage capacity 65-95 m³ - Weighing system 20000/3000 kg - Loading belts/extractor belts 800 mm - screw Ø323 mm - Batching 6 m³ - skid mounted - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED

Codice : MOBILFASTDRY100

Quantity

Generic Description

N.1 MOBIL FAST DRY 100
Production 100 m³/h - Weighing system 20000/3000 kg - Loading belts/extractor belts 800 mm - screw Ø323 mm - Batching 6 m³ - skid mounted - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED.
N.1 FOUR ALIGNED AGGREGATES BINS FOR MOBIL FAST - STORAGE 65-95 m³ - FULLY GALVANISED.
N.1 INDIPENDENT SUPPORTING STRUCTURE OF AGGREGATES BINS (4 COMPARTMENTS) FOR MOBIL FAST DRY 100.
N.4 SETUP FOR THE INSTALLATION OF THE COVERING FOR THE AGGREGATES BINS (COST FOR SINGLE COMPARTMENT).
N.4 SETUP FOR THE INSTALLATION OF SAFETY BARRIERS (COST FOR SINGLE COMPARTMENT).
N.1 ANTI-OBSTRUCTION DEVICE completed with rotary paddle level-indicator device installed in the discharge cone of the loading belt
N.1 UPPER COVERING FOR BELT for chevron belt with WIDTH 800 mm, length 12000 mm.
N.1 LOWER COVERING FOR BELT for chevron belt with WIDTH 800 mm - length 12000 mm.
N.1 BETONWIN 3 + PC SIEMENS OR IBM + MONITOR 22``LCD+ LASER PRINTER.
N.1 REMOTE TECHNICAL SUPPORT SERVICE FREE OF CHARGE DURING GUARANTEE PERIOD.
N.1 UPS (ON-LINE TYPE) Battery life 6/20 minutes.
N.1 COMMAND CABIN supplied by the purchasing company.
N.1 FINISHING OF PAINTED COMPONENTS STANDARD COLOUR: RAL 9002 (GREY WHITE) / RAL 7015 (SLATE GREY).
N.1 GENERAL DESIGN SPECIFICATIONS FOR BATCHING PLANTS AND SILOS OF MAXIMUM DIAMETER 3500 mm
All the components are designed for the following environmental conditions:
- Soil roughness: flat area with low vegetation, isolated obstacles 20 times the height from the installation site - Exposition Category II (Eurocode 1);
- Actions on structures:
snow load: 1.00 kN/m2
wind load: v= 28 m/s – 100 km/h;
- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);
- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20; - Outside air temperature: within -5° (minimum winter temperature) and +40° (maximum summer temperature), unless for the supply of insulated claddings on the concrete plants and/or the silos;
- Importance Class: Class I, buildings with occasional presence of people (Eurocode 1).
Steel for structural use: S275 or better quality, hot-rolled profiles, in accordance with the EN 10025 standards.
Alloy steel: S235 or better quality, in accordance with the UNI EN 10025 standards.
