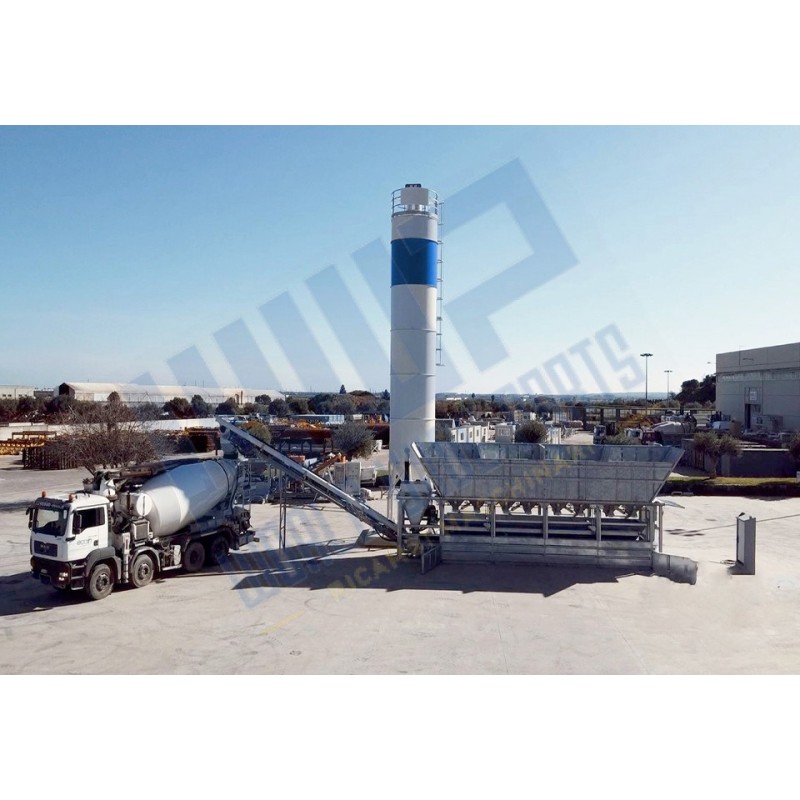

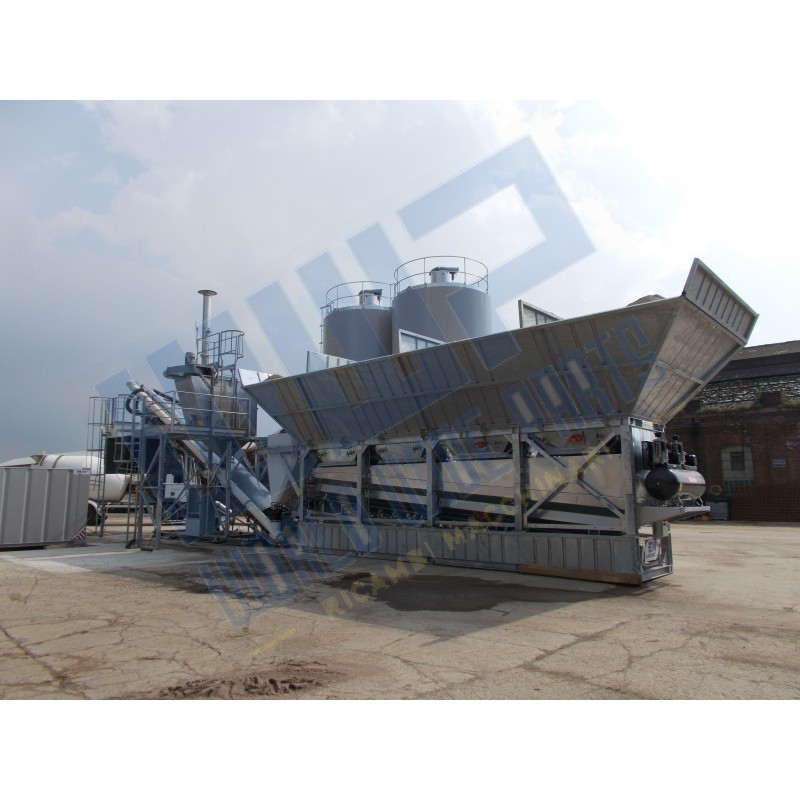

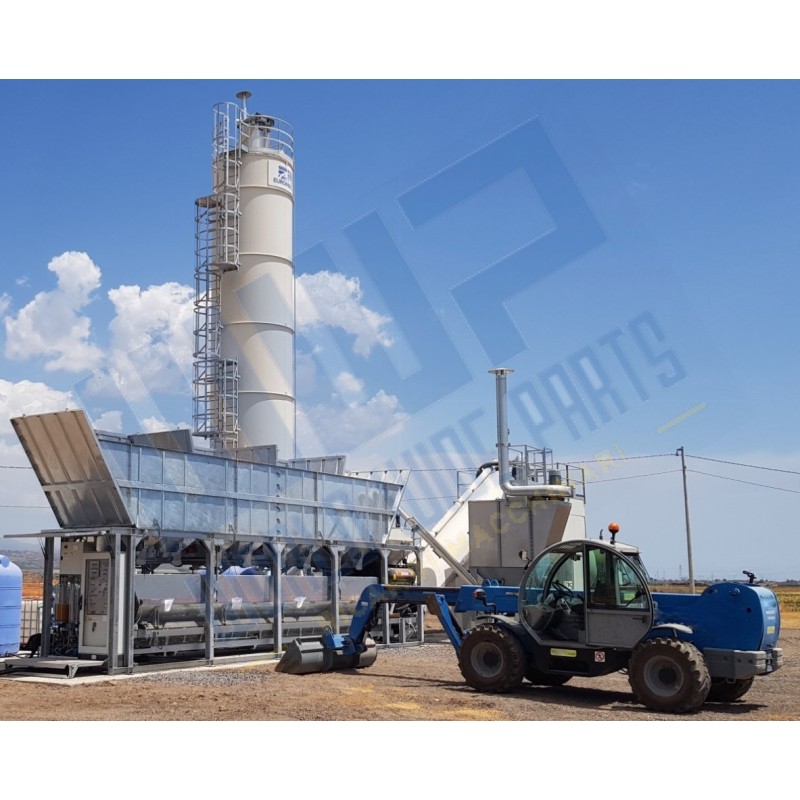

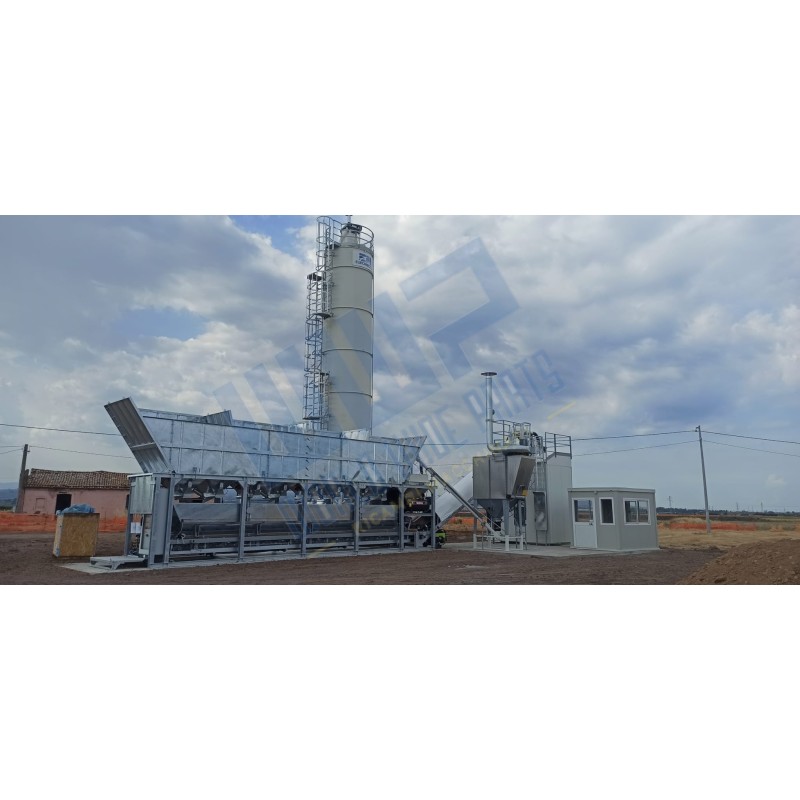

MOBIL FAST DRY 4V 60

Name: MOBIL FAST DRY 4V 60
Brand: World Wide Parts
SKU: MOBILFASTDRY4V60
Availability: OutOfStock

Production 60 m³/h - Storage 35-40 m³ (geometric/peak) - Weighing system 10000/2000 kg - Loading belts / extractor belts 800 mm - screw 220 mm - Aggregates' batching 5 m³ - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED

Codice : MOBILFASTDRY4V60

Quantity

Generic Description

N.1 FAST DRY 4V 60 Production 60 m³/h - Storage 35-40 m³ (geometric/peak) - Weighing system 10000/2000 kg - Loading belts / extractor belts 800 mm - screw 220 mm - Aggregates' batching 5 m³ - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED.
N.1 AGGREGATE STORAGE BINS WITH N.4 COMPARTMENTS CAPACITY 35-40 m³ (geometric-peak) - FULLY GALVANIZED.
N.1 INDIPENDENT SUPPORTING STRUCTURE OF AGGREGATES BINS (4 COMPARTMENTS) FOR FAST DRY 4V 60 mandatory for mobile plants - to avoid foundation works - TOTALLY GALVANIZED.
N.1 UPPER COVERING FOR BELT FOR MOBIL FAST 1500 B with WIDTH 800 mm, lenght 14000 mm.
N.1 HOPPERTOP FILTER 1 m2 FILTERING SURFACE for dust exhaustion of cement batching.
N.1 ANTI-OBSTRUCTION DEVICE completed with rotary paddle level-indicator device installed in the discharge cone of the loading belt.
N.1 BETONWIN 3 + PC SIEMENS OR IBM + MONITOR 22``LCD+ LASER PRINTER.
N.1 UPS (ON-LINE TYPE) - Battery life 6/20 minutes.
N.1 INSULATED CABIN MAX 3000 mm; windows on 2 sides; panels/walls and roof th. 40 mm.
N.1 FINISHING OF PAINTED COMPONENTSSTANDARD COLOUR: RAL 9002 (GREY WHITE) / RAL 7015 (SLATE GREY).
N.1 GENERAL DESIGN SPECIFICATIONS FOR BATCHING PLANTS AND SILOS OF MAXIMUM DIAMETER 3500 mm.
All the components are designed for the following environmental conditions:
- Soil roughness: flat area with low vegetation, isolated obstacles 20 times the height from the installation site - Exposition Category II (Eurocode 1);
- Actions on structures:
snow load: 1.00 kN/m2
wind load: v= 28 m/s – 100 km/h;
- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);
- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20; - Outside air temperature: within -5° (minimum winter temperature) and +40° (maximum summer temperature), unless for the supply of insulated claddings on the concrete plants and/or the silos;
- Importance Class: Class I, buildings with occasional presence of people (Eurocode 1).
Steel for structural use: S275 or better quality, hot-rolled profiles, in accordance with the EN 10025 standards.
Alloy steel: S235 or better quality, in accordance with the UNI EN 10025 standards.
