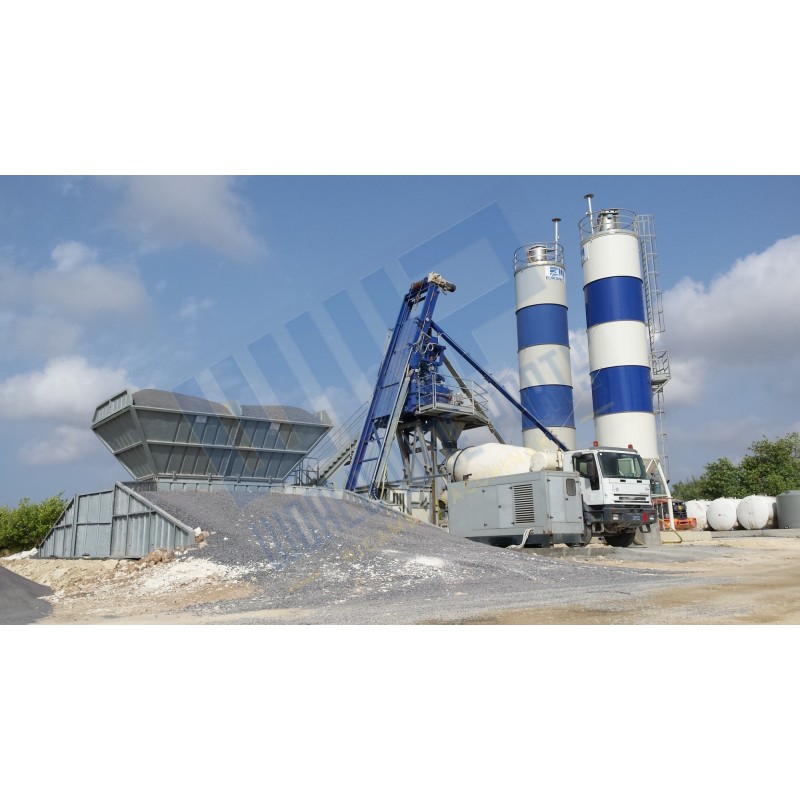

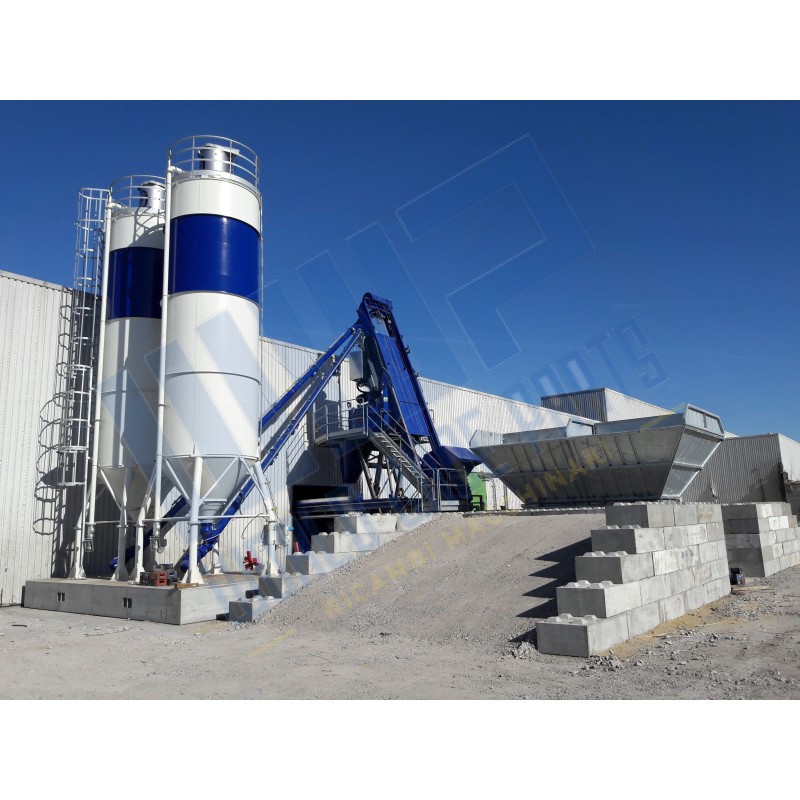

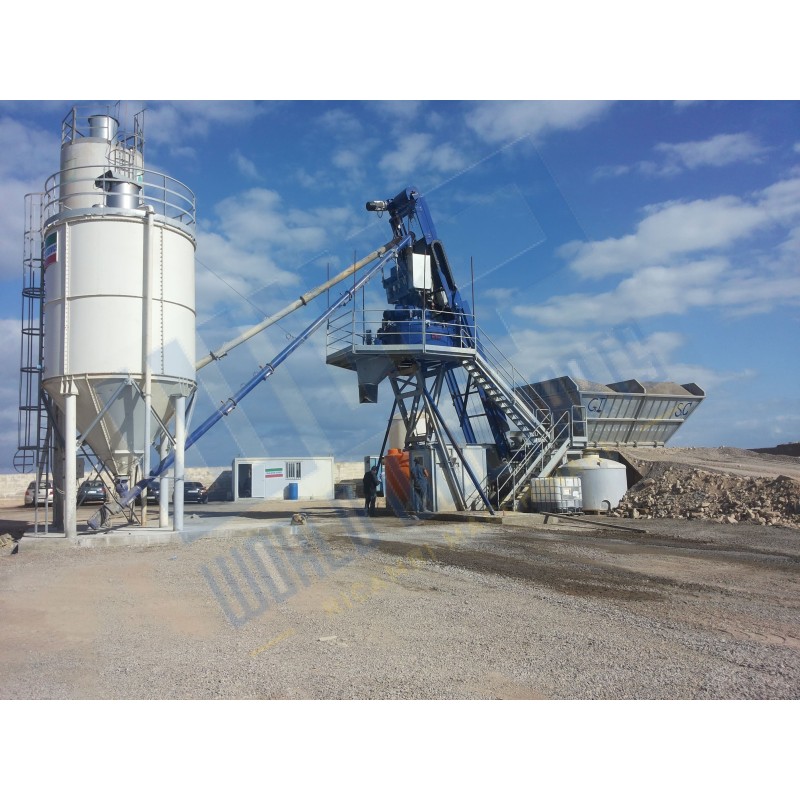

MOBIL FAST 1000 S
Production 45 m3/h - Planetary mixer 1500/1000 (yield concrete 1 m3 per cycle) - Mixer loaded by skip - Cabin - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED
Generic Description
- N.1 MOBIL FAST 1000 S - MIXING GROUP AND SKIP
Production 45 m3/h - Planetary mixer 1500/1000 - yield concrete 1 m3 per cycle (for more details, see the MEP catalog under "Technical Data Sheets") - Mixer loaded by skip - Cabin - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED. - N.1 AGGREGATES STORAGE BINS WITH N.4 CROSS BINS OR IN LINE FOR MOBIL FAST 1000 S - INCLUDING INDEPENDENT SUPPORTING STRUCTURE FOR AGGREGATE BINS - Aggregates bins storage capacity 50-55 m3 (geometric-peak) - FULLY GALVANIZED.
- N.1 BETONWIN 3 + PC SIEMENS OR IBM + MONITOR 22``LCD+ LASER PRINTER.
- N.1 SOFTWARE FOR MIXER OPERATING FOR BETONWIN/BETONSYSTEM (FOR TWIN SHAFT COMPULSORY MIXER OR PLANETARY MIXER) AND PASSIV WATTMETER FOR MIXER.
- N.1 WATER ADDING SYSTEM pulse counter with sphere valve of 1/2" for clean water - precision batching in case of mixer.
- N.1 UPS (ON-LINE TYPE) Battery life 6/20 minutes.
- N.1 MANAGEMENT IN MAINTENANCE MODE - MOBIL FAST 1000 S - 1500 B - THROUGH ELECTROMECHANICAL CONTROLS - ON THE CONTROL PANEL OF THE BATCHING PLANT.
- N.1 FILTER FOR MIXER - 12 m² FILTERING SURFACE .
- FINISHING OF PAINTED COMPONENTS -STANDARD COLOUR: RAL 9002 (GREY WHITE) / RAL 7015 (SLATE GREY)
- N.1 GENERAL DESIGN SPECIFICATIONS FOR BATCHING PLANTS AND SILOS OF MAXIMUM DIAMETER 3500 mm
All the components are designed for the following environmental conditions:
- Soil roughness: flat area with low vegetation, isolated obstacles 20 times the height from the installation site - Exposition Category II (Eurocode 1);
- Actions on structures:
snow load: 1.00 kN/m2
wind load: v= 28 m/s – 100 km/h;
- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);
- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20; - Outside air temperature: within -5° (minimum winter temperature) and +40° (maximum summer temperature), unless for the supply of insulated claddings on the concrete plants and/or the silos;
- Importance Class: Class I, buildings with occasional presence of people (Eurocode 1).
Steel for structural use: S275 or better quality, hot-rolled profiles, in accordance with the EN 10025 standards.
Alloy steel: S235 or better quality, in accordance with the UNI EN 10025 standards.
