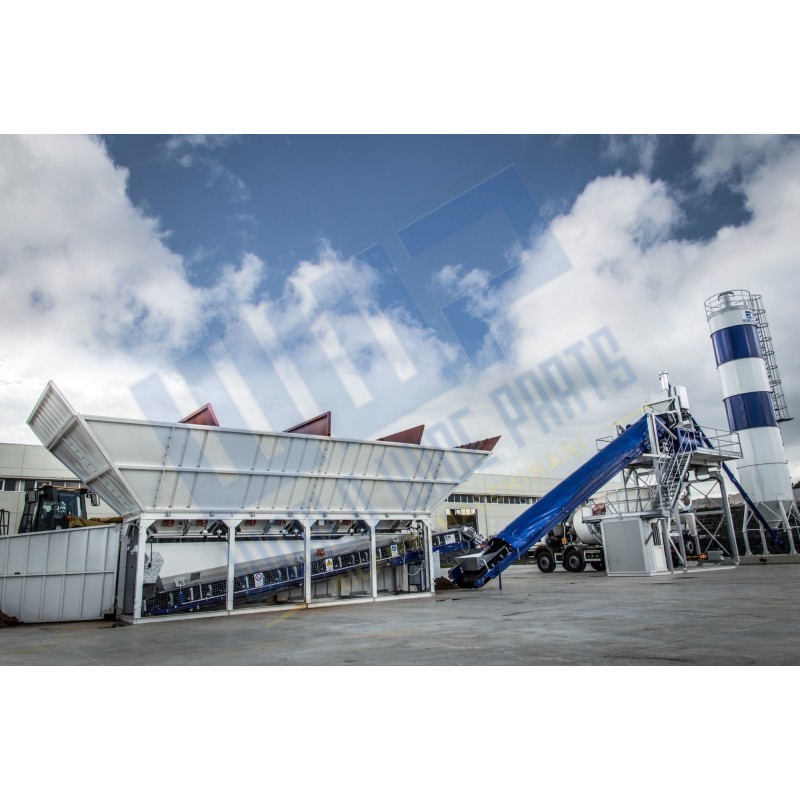

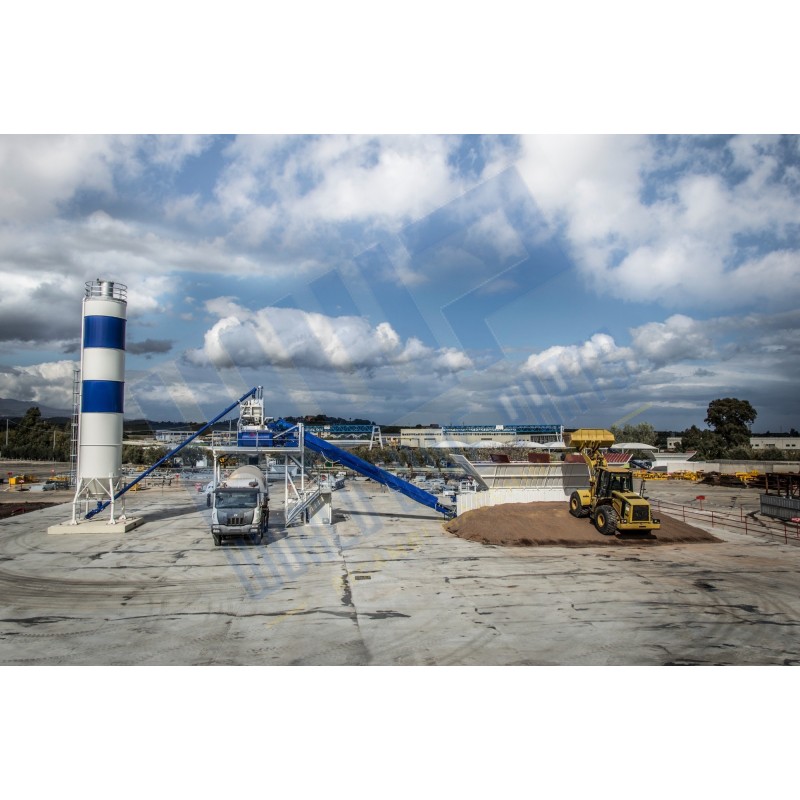

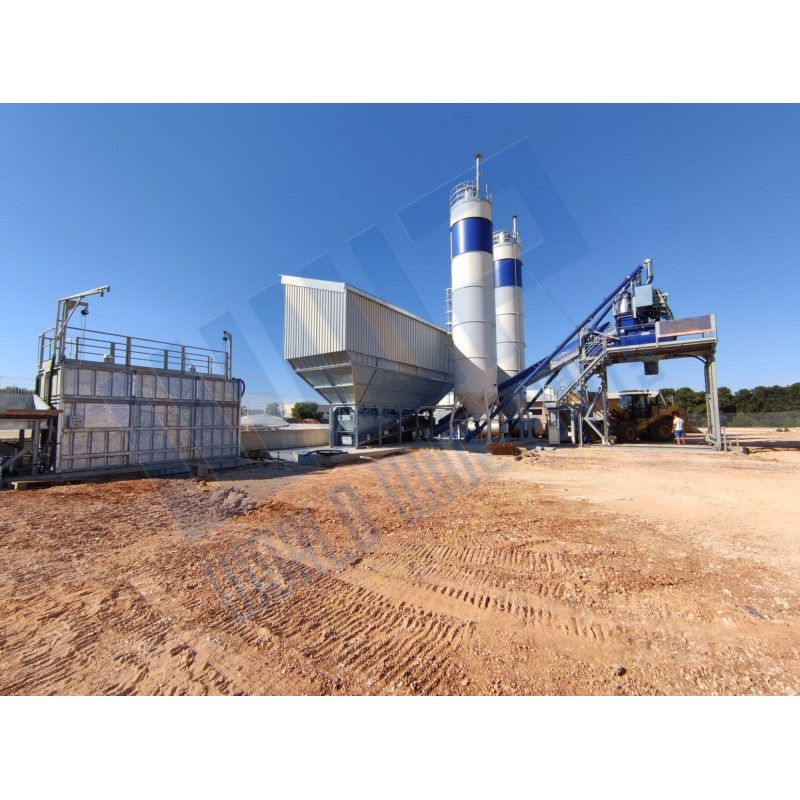

MOBIL FAST 1500 B

• N.1 MOBIL FAST 1500 B - MIXING GROUP AND LOADING BELT - Production 65 m³/h – Twin shaft mixer 2250/1500 - yield concrete 1,5 m³ per cycle (for more details, see the MEB catalog under "Technical Data Sheets") - Mixer loaded by belt conveyor - Cabin - FULLY GALVANIZED - FOUNDATION WORKS NO NEEDED.


• N.1 FOUR ALIGNED AGGREGATES BINS FOR MOBIL FAST 1500 B Aggregates bins storage capacity 50-55 m³ (geometric-peak) - FULLY GALVANIZED.


• N.1 INDIPENDENT SUPPORTING STRUCTURE OF AGGREGATES BINS (4 COMPARTMENTS ALIGNED) FOR MOBIL FAST 1500 B mandatory for mobile plants - to avoid  foundation works - TOTALLY GALVANIZED.


• N.4 SETUP FOR THE INSTALLATION OF THE COVERING FOR THE AGGREGATES BINS (COST FOR SINGLE COMPARTMENT).


• N.4 SETUP FOR THE INSTALLATION OF SAFETY BARRIERS (COST FOR SINGLE COMPARTMENT).


• N.1 UPPER COVERING FOR BELT FOR MOBIL FAST 1500 B with WIDTH 800 mm, lenght 14000mm.


• N.1 LOWER COVERING FOR MOBIL FAST 1500 B for chevron belt with WIDTH 800 mm, LENGTH 14000mm.


• N.1 BETONWIN 3 + PC SIEMENS OR IBM + MONITOR 22``LCD+ LASER PRINTER.


• N.1  SOFTWARE FOR MIXER OPERATING FOR BETONWIN/BETONSYSTEM (FOR TWIN SHAFT COMPULSORY MIXER OR PLANETARY MIXER) AND PASSIVE WATTMETER FOR MIXER.


• N.1 WATER ADDING SYSTEM pulse counter with sphere valve of 1/2" for clean water - precision batching in case of mixer.


• N.1 REMOTE TECHNICAL SUPPORT SERVICE FREE OF CHARGE DURING GUARANTEE PERIOD.


• N.1 UPS (ON-LINE TYPE) Battery life 6/20 minutes.


• N.1 MANAGEMENT IN MAINTENANCE MODE - MOBIL FAST 1000 S - 1500 B THROUGH ELECTROMECHANICAL CONTROLS - ON THE CONTROL PANEL OF THE BATCHING PLANT.


• N.1 RINGS FOR SHAFTS CLEANING FOR TWIN SHAFT MIXER.


• N.1 HOPPERTOP FILTER 1 m² FILTERING SURFACE for dust exhaustion of cement batching.


• N.1 FILTER (10 m²) FOR DOUBLE SHAFT MIXER 1,33 m³ YIELD.


• N.1 FINISHING OF PAINTED COMPONENTS STANDARD COLOUR: RAL 9002 (GREY WHITE) / RAL 7015 (SLATE GREY).


• GENERAL DESIGN SPECIFICATIONS FOR BATCHING PLANTS AND SILOS OF MAXIMUM DIAMETER 3500 mm

All the components are designed for the following environmental conditions:

- Soil roughness: flat area with low vegetation, isolated obstacles 20 times the height from the installation site - Exposition Category II (Eurocode 1);

- Actions on structures:

snow load: 1.00 kN/m2

wind load: v= 28 m/s – 100 km/h;

- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);

- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20; - Outside air temperature: within -5° (minimum winter temperature) and +40° (maximum summer temperature), unless for the supply of insulated claddings on the concrete plants and/or the silos;

- Importance Class: Class I, buildings with occasional presence of people (Eurocode 1).

Steel for structural use: S275 or better quality, hot-rolled profiles, in accordance with the EN 10025 standards.

Alloy steel: S235 or better quality, in accordance with the UNI EN 10025 standards.
