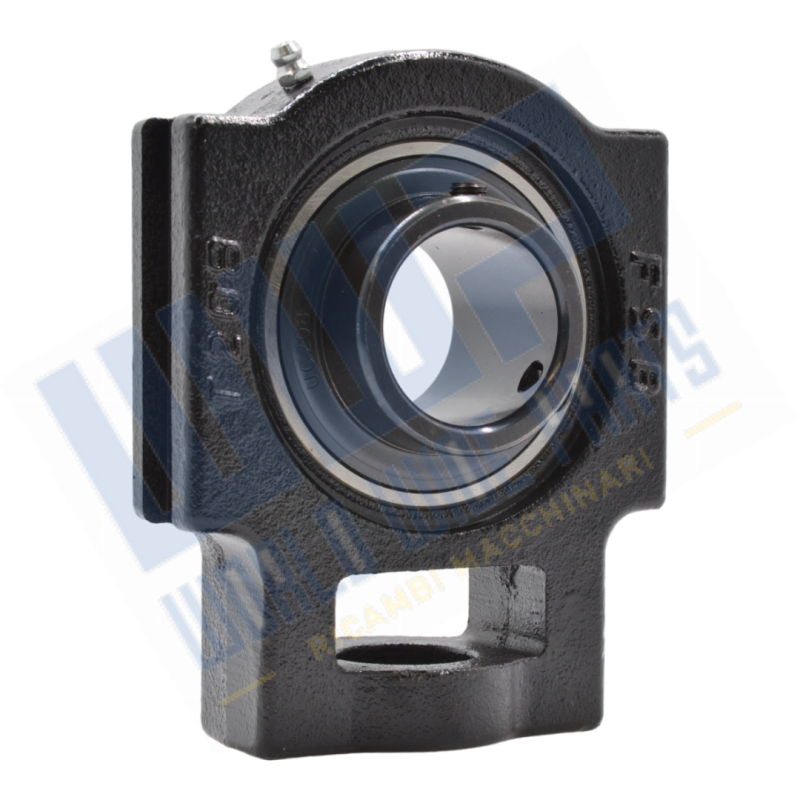

UCT 208 - Sliding bracket Ø40
Shaft diameter: 40 [mm].
Total bearing width: 49 [mm].
Bearing width, total: 49.2 [mm]
Generic Description
Dimensions
| d |
40 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈52.5 mm
|
Inner ring diameter |
| A |
49 mm
|
Total width |
| A1 |
16 mm
|
Drive groove width |
| A2 |
33 mm
|
Flange width with pilot grooves |
| A5 |
26 mm
|
End cap standout |
| B |
49.2 mm
|
Inner ring width |
| B4 |
8 mm
|
Distance from the side face of the fastener to the centre of the thread |
| H |
114 mm
|
Total height |
| H1 |
102 mm
|
Distance between drive groove bases |
| H2 |
83 mm
|
Height of fastening end |
| L |
145 mm
|
Total height |
| L1 |
88 mm
|
Distance between fixing end face and spherical insert diameter shaft |
| L2 |
16 mm
|
Fixing end length |
| L3 |
83 mm
|
Drive groove length |
| N |
29 mm
|
Fixing bolt hole diameter |
| N1 |
19 mm
|
Fixing groove length |
| N2 |
49 mm
|
Fixing groove height |
| s1 |
30.2 mm
|
Distance from the side face of the fastener to the centre of the track |
| RG |
1/4-28 UNF
|
Threaded housing for Greaser |
|---|---|---|
| R1 |
4 mm
|
Thread housing in axial position |
| Rα |
30 °
|
Housing thread in angular position |
| DN |
6.6 mm
|
Diameter of the greaser spherical head |
|---|---|---|
| SWN |
7.94 mm
|
Hexagonal spanner dimensions for greaser |
| GN |
1/4-28 UNF
|
Thread of greaser |
Calculation data
| Dynamic load capacity | C |
32.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
20 kN
|
| Fatigue limit load | Pu |
0.85 kN
|
| Speed limit |
3 750 r/min
|
|
|
Speed limit with shaft tolerance h6
|
