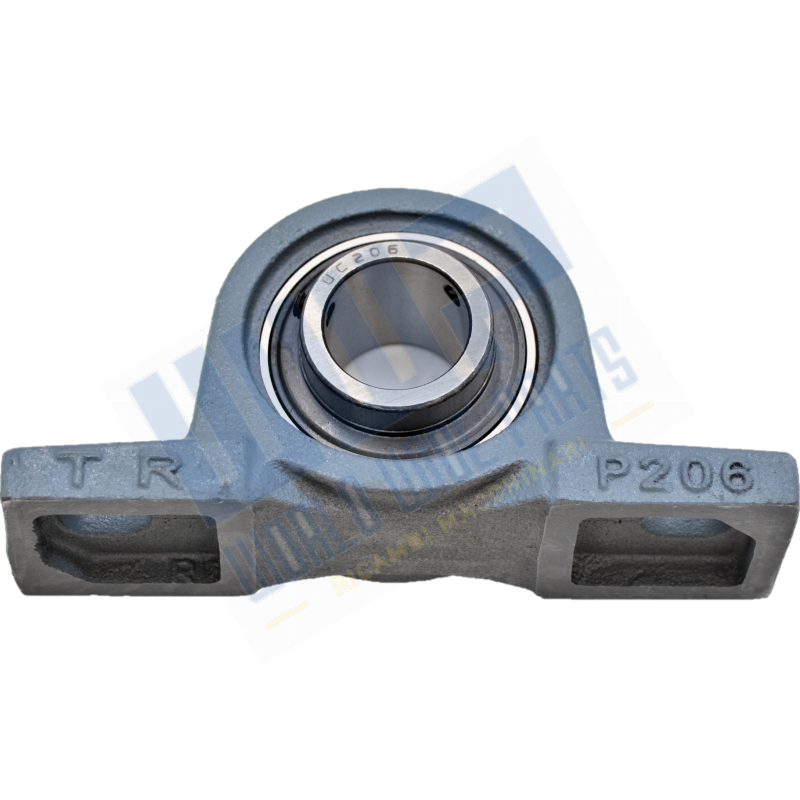

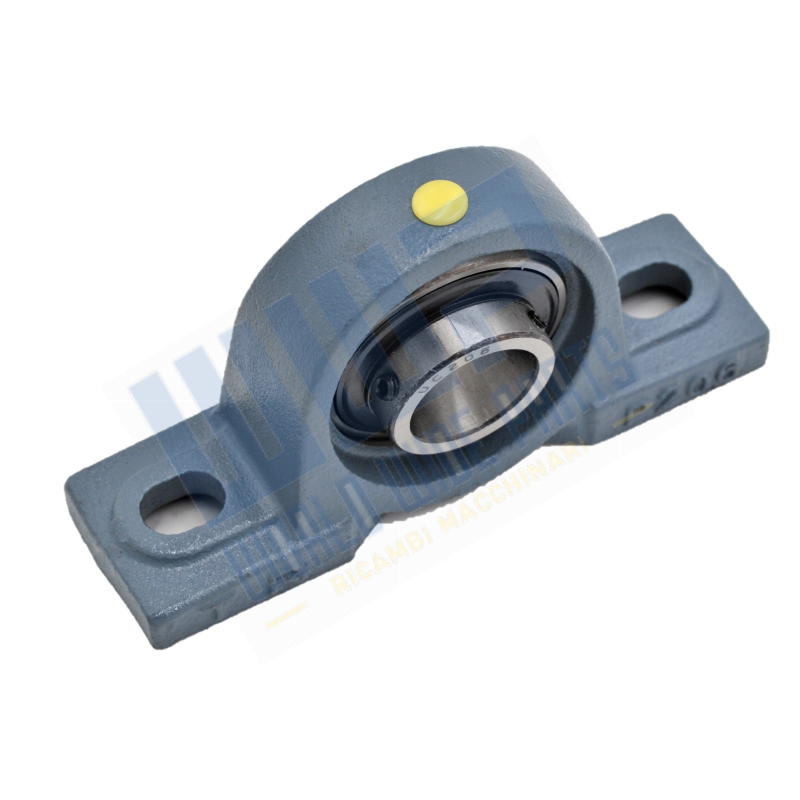

UCP 206 - Bridge support Ø30
Shaft diameter: 30 [mm].
Centre height (upright support): 42.9 [mm].
Total width of support: 45 [mm]
Distance between bolt hole centres: 121 [mm]
Bearing width, total: 38.1 [mm]
Generic Description
UCP 206 - Bridge support Ø30
Shaft diameter: 30 [mm].
Centre height (upright support): 42.9 [mm].
Total width of support: 45 [mm]
Distance between bolt hole centres: 121 [mm]
Bearing width, total: 38.1 [mm]
