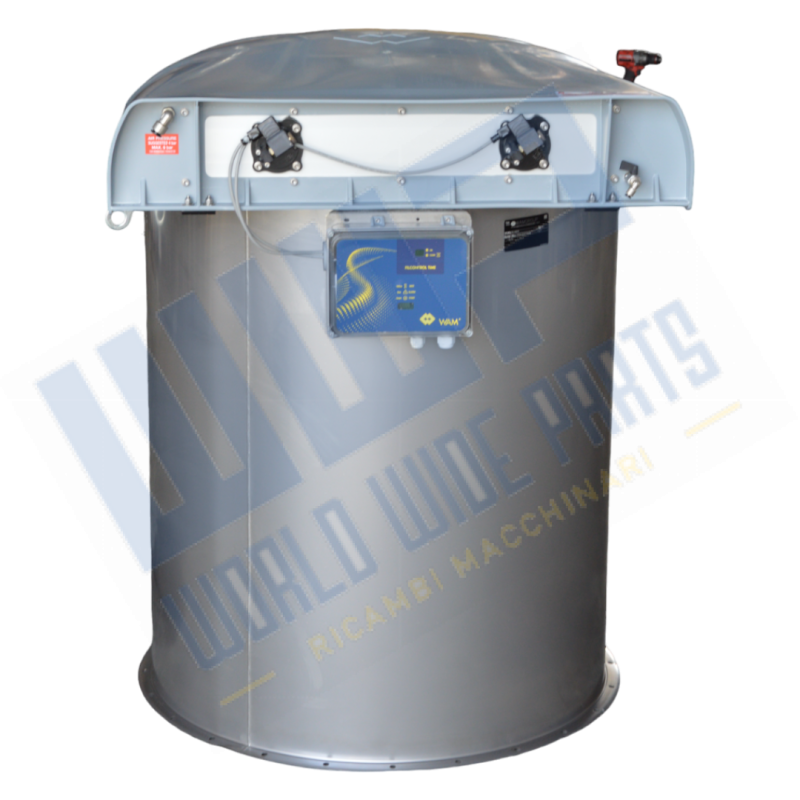

Silotop Zero Filter 14 m²

SILOTOP^® ZERO is a circular filter for dust suction of cement silos, realized entirely with AISI 304 ( element`s plate excluded) with flanged filter casing to fasten to the silo with a set of 24 bolts.
The POLYPLEAT^® unit washing is made by a new shot system of solenoid valves "full immersion" and the shot pipes linked to the tank.
The tank have the following features:
- N° 4 filtering units;
- Compact structure (1100 mm heigth and 800 mm diameter) in stainless steel body with bottom flange;
- Filtering surface 14 m²;
- 3 solenoid valves with pneumatic washing;
- Dust emission < 1mg/Nm³;
- High filtration efficiency due to EPA-CLASS ABSOLUTE POLYPLEAT^® filtering elements

NOTE: The Silotop filter is suitable for the silo loading with N° 1 cement truck at the time (no more cement trucks simultaneously)
