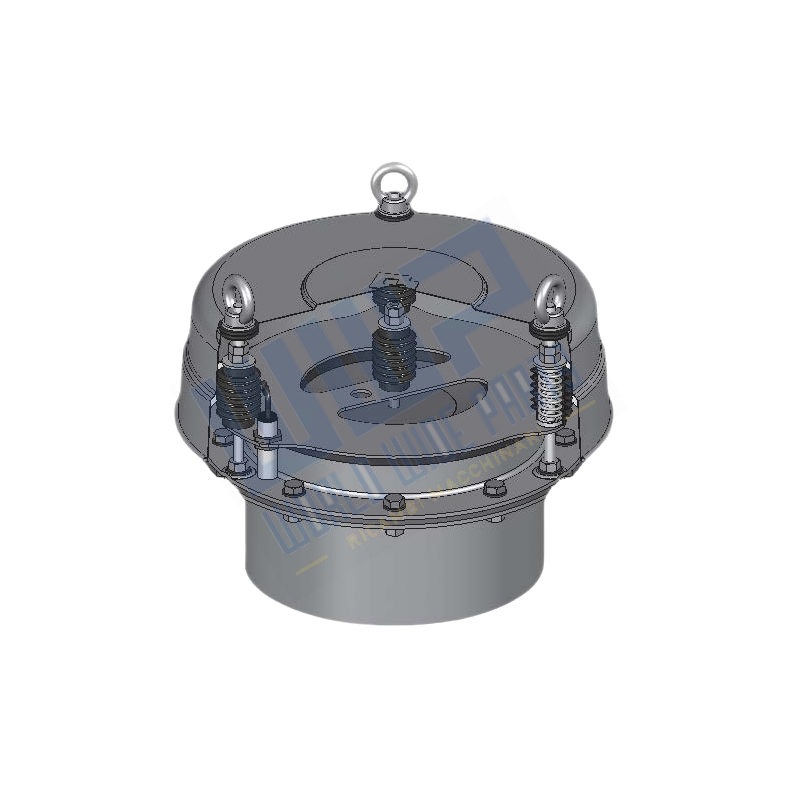

PRESSURE CONTROL VALVES FOR EXPLOSIVE ATMOSPHERES
Pressure control valve used in all plants where it is required to control excess pressure or negative pressure, if any, created inside the containers, thereby preventing their breakage or deformation.
Generic Description
NOMINAL SIZES
- VCPX 273
- VCPX 375
FLANGES
- According to WAM®
VALVE BODY
- Carbon steel powder coated
RAL 7001
- Stainless steel AISI 304
VALVE DISC
- Valve made of carbon steel with black EPDM
- Valve made of AISI 304 with white EPDM
COVER
- AISI 304
STUB PIPE UNDER VALVE FOR CONNECTION TO SILO
- always supplied
- Carbon steel powder painted with RAL 7001
Unless otherwise specified, all the dimensions are given in millimetres.
Technical Data Sheets
SCHEDA TECNICA C260N000014
Recommended configuration with detailed information
