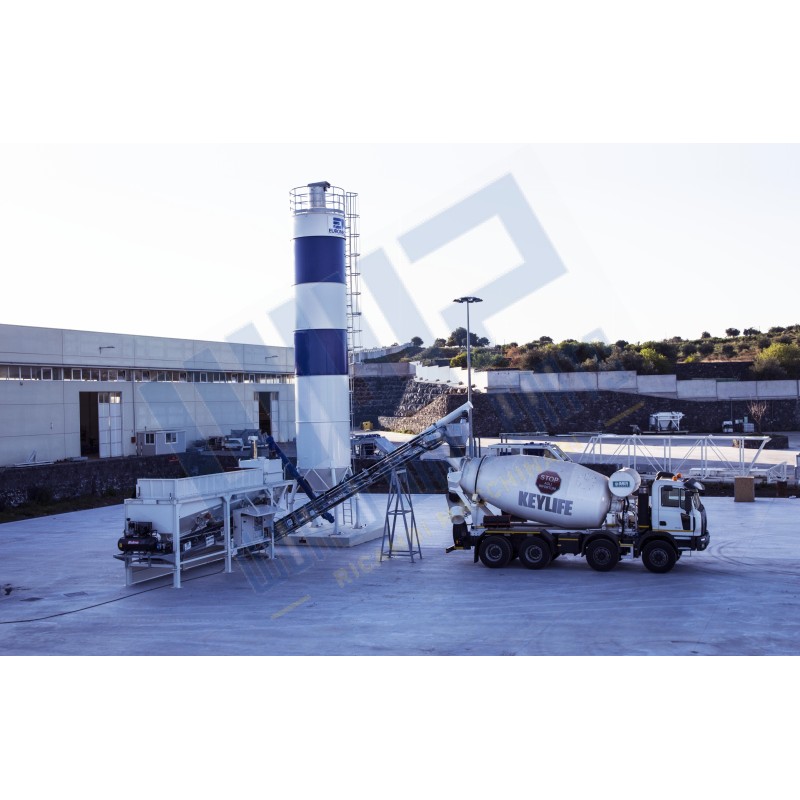

MOBIL FAST DRY 2V 60
FAST 2V DRY 60 - Production 60 m3/h - Aggregates storage 12-15 m3 - FOUNDATION WORKS NO NEEDED
Generic Description
- N.1 FAST 2V DRY 60 Production 60 m3/h - Aggregates storage 12-15 m3 - FOUNDATION WORKS NO NEEDED.
- N.1 UPPER COVERING FOR BELT for chevron belt with WIDTH 800 mm, length 12000 mm.
- N.1 LOWER COVERING FOR BELT for chevron belt with WIDTH 800 mm - length 12000 mm.
- N.1 COMMAND CABIN supplied by the purchasing company.
- N.1 FINISHING OF PAINTED COMPONENTSSTANDARD COLOUR: RAL 9002 (GREY WHITE) / RAL 7015 (SLATE GREY).
- N.1 GENERAL DESIGN SPECIFICATIONS FOR BATCHING PLANTS AND SILOS OF MAXIMUM DIAMETER 3500 mm
All the components are designed for the following environmental conditions:
- Soil roughness: flat area with low vegetation, isolated obstacles 20 times the height from the installation site - Exposition Category II (Eurocode 1);
- Actions on structures:
snow load: 1.00 kN/m2
wind load: v= 28 m/s – 100 km/h;
- Ground type: type B, medium consistency soil, average shear waves velocity in the top 30 m: between 360 m/s and 800 m/s, NSPT > 50 blows / 30 cm in coarsed-grained ground and CU,30 > 250 kPA in fine-grained grounds (Eurocode 8);
- Seismic action: peak value of assumed horizontal acceleration of the elastic response spectrum for the lifesaving ultimate limit state: ag/g = 0,20; - Outside air temperature: within -5° (minimum winter temperature) and +40° (maximum summer temperature), unless for the supply of insulated claddings on the concrete plants and/or the silos;
- Importance Class: Class I, buildings with occasional presence of people (Eurocode 1).
Steel for structural use: S275 or better quality, hot-rolled profiles, in accordance with the EN 10025 standards.
Alloy steel: S235 or better quality, in accordance with the UNI EN 10025 standards.
