MOBILE ECO-HOPPER - Hopper for unloading powdery materials with vessel bucket
Manual handling - capacity: 45 m³ - including dedusting system - total weight: 72 t
Generic Description

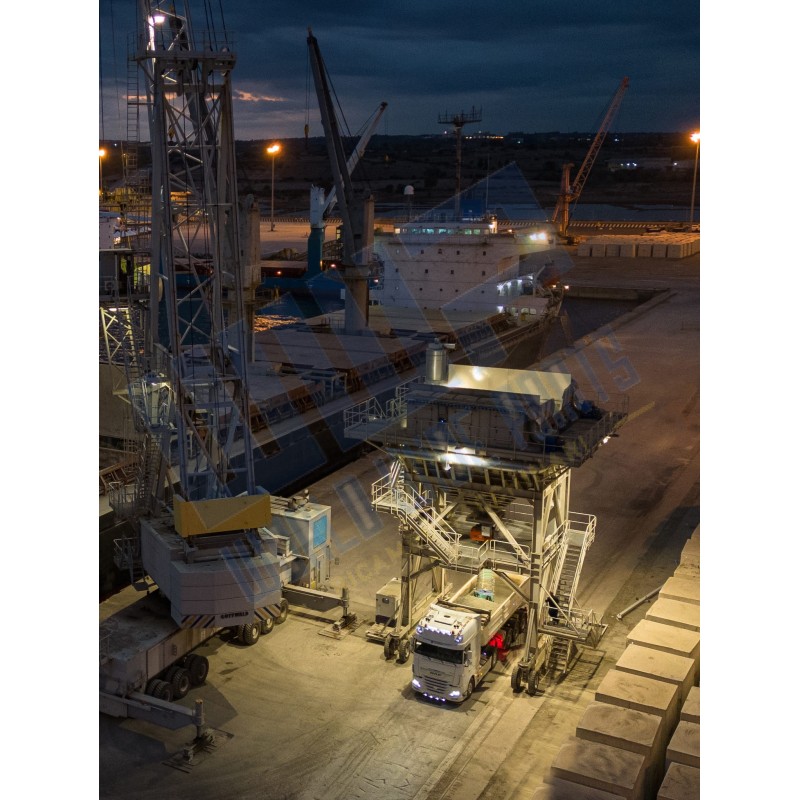

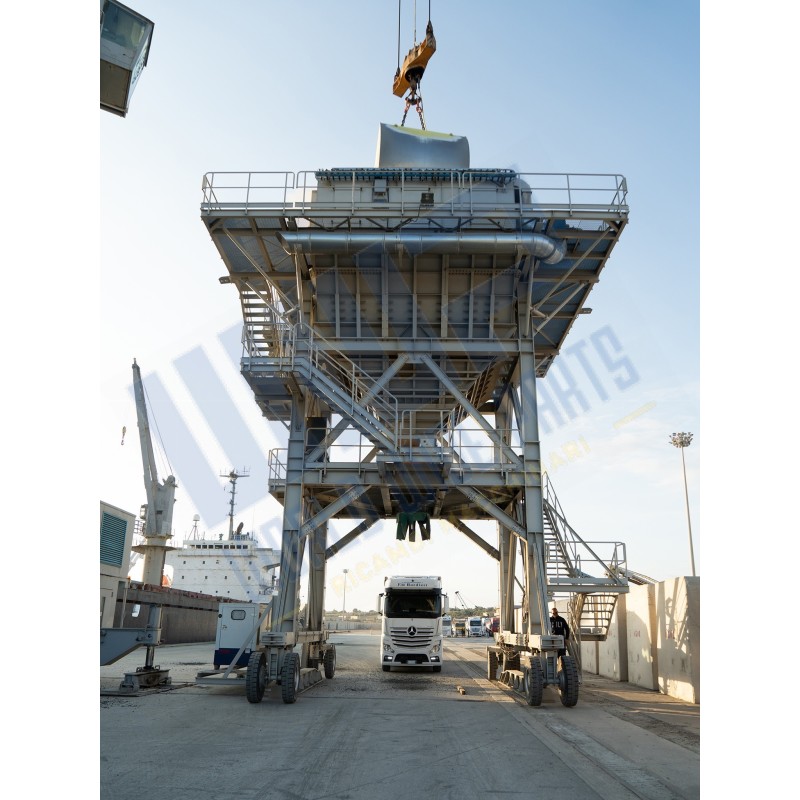

Hopper for unloading with bucket from ship "Mobile ECO-HOPPER".
Suitable for 12 m³ buckets for unloading granulometric materials from ship to hopper. Suitable for unloading materials directly onto trucks, unloading capacity approx. 400 t/h.
Main features:
- Capacity: 45 m³
- Suitable for unloading: clinker, limestone, gypsum, slag
- Material size 0 ÷ 50 mm
- Pile density 0.8 ÷ 2 ton/m³
- Unloading capacity 400 ton/h approx.
- Discharge system: directly on truck with discharge outlet
Hopper
Upper part - straight walls
- Q235B steel sheet, 10 mm thick
- Upper opening 6,000 x 7,000 mm
- Wear plates 16 Mn steel, 8 mm thick
Grid on top
- Plate material steel S355JR
- Dimensions 5,050 x 5,050 mm
- Steel plate thickness 10 mm
Central part - inclined walls
- Capacity: 45 m³
- Q235B steel sheet, 10 mm thick
- 16 Mn steel wear plates, 8 mm thick
- Opening 1,000 x 1,000 mm
Discharge opening
- Loading flange diameter: 500 mm
- Maximum flow rate 1,800 m³/h
- Extended length: 6,100 mm. Length when closed depends on truck height.
- Intake flange diameter: 150 mm
- Control installed power: 5.5 kW
- Slow cable limit switch and extended limit switch
- Level indicator
- IP55 control panel
- IP65 wireless panel
- Estimated weight: 900 kg
Dedusting system
- Self-closing" type
- Bag filter No. 6
- Air flow rate No. 6 x 5,500 m³/h
- Filter area 6 x 45 m2
- Filtration speed 2,037 m/min
- Fan power No. 6 x 5.5 kW
- Supply voltage 400 V
- Frequent power supply 50 Hz
Handling device
- Manual
- No. 8 solid rubber wheels, outside diameter 1,138 mm, depth 335 mm
- Pneumatic diameter: 500 mm
- Mechanical jack for all equipment: No. 4 sets
Air compressor
- Volume 2.15 m³/min
- Power 15 kW
- Pressure 8 bar
Total weight = 72 ton
